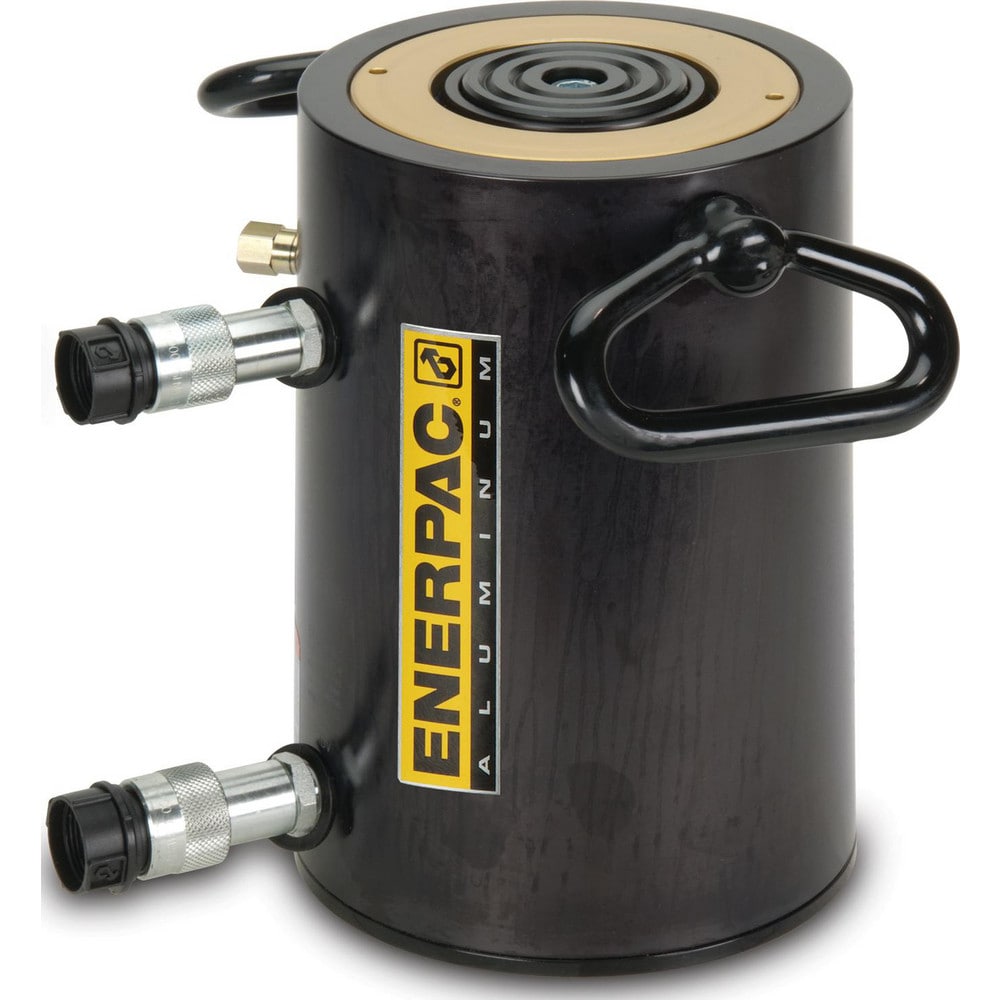

Portable Hydraulic Cylinders; Actuation: Double Acting; Load Capacity: 150; Stroke Length: 5.91; Oil Capacity: 207.91; Cylinder Bore Diameter (Decimal Inch): 6.70; Cylinder Effective Area: 1; Lowered Height: 13.71
Item #: 38838587
Brand: Enerpac
Model #: RAR1506
Product Specifications
| Actuation | Double Acting |
| Load Capacity | 150 |
| Stroke Length | 5.91 |
| Oil Capacity | 207.91 |
| Cylinder Bore Diameter (Decimal Inch) | 6.70 |
| Cylinder Effective Area | 1 |
| Lowered Height | 13.71 |
| Retracted Length | 14 |
| Extended Length | 19.61 |
| Cushion Type | No Cushion |
| Bore Diameter | 6.7000 |
| Outside Diameter | 9.06 in |
| Plunger Type | Solid |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 3.7 |
| Series | RAR |
| Maximum Height (Inch) | 19.6100 |
| Includes | CR400 Coupler; Dust Cap; Handle |
| UNSPSC Code | 27121602 |
| Actuation | Double Acting |
| Load Capacity | 150 |
| Stroke Length | 5.91 |
| Oil Capacity | 207.91 |
| Cylinder Bore Diameter (Decimal Inch) | 6.70 |
| Cylinder Effective Area | 1 |
| Lowered Height | 13.71 |
| Retracted Length | 14 |
| Extended Length | 19.61 |
| Cushion Type | No Cushion |
| Bore Diameter | 6.7000 |
| Outside Diameter | 9.06 in |
| Plunger Type | Solid |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 3.7 |
| Series | RAR |
| Maximum Height (Inch) | 19.6100 |
| Includes | CR400 Coupler; Dust Cap; Handle |
| UNSPSC Code | 27121602 |
| MSC Part # | 38838587 |
| Mfr Part # | RAR1506 |
| Country of Origin Country of Origin is subject to change | India |
