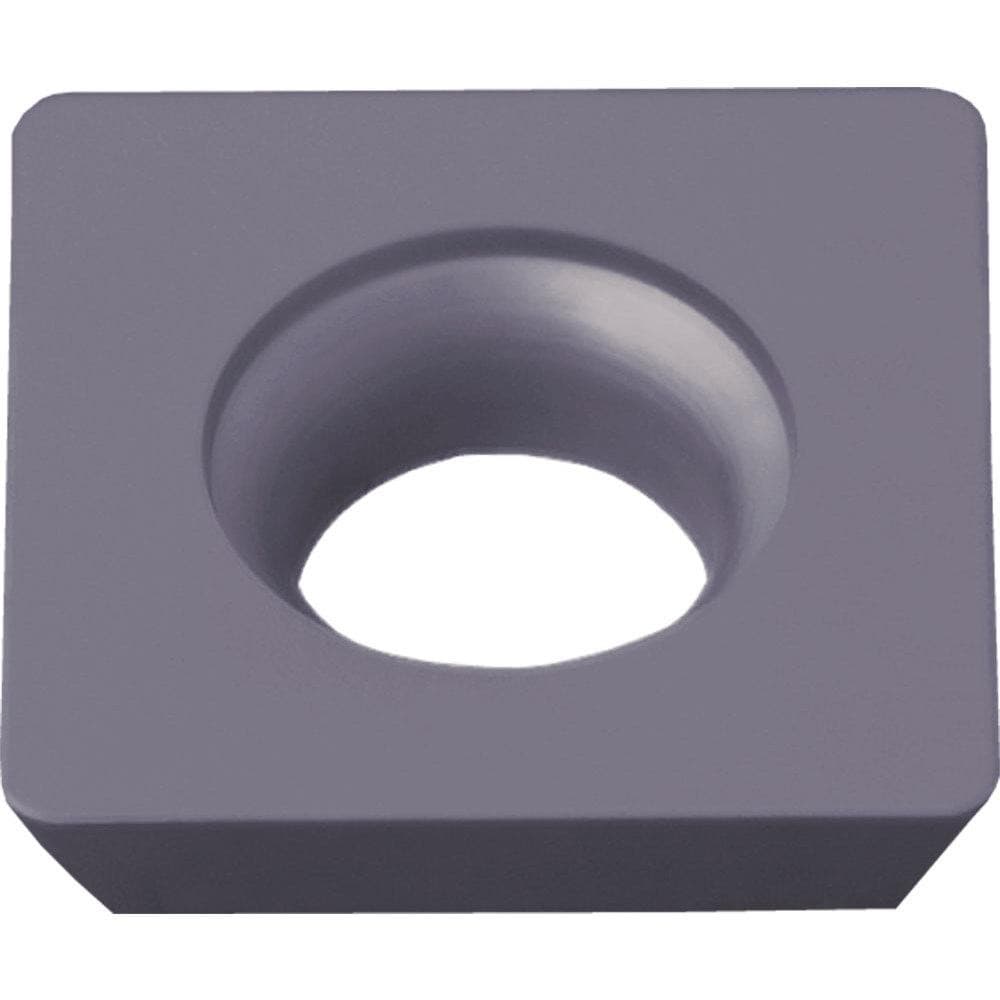

Milling Insert: SDKW09T204TN PR1825, Carbide
Item #: 86476009
Brand: Kyocera
Model #: TLT00025
Product Specifications
| Insert Style | SDKW |
| Insert Size | 09T204 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1095 |
| Thickness (mm) | 2.7800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 15.000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Series | MCSE Chamfer Mill |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | SDKW09T204TNPR1825 |
| Iso Code | SDKW09T204TN |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | SDKW09T204TNPR1825 |
| Chip Breaker | TN |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
