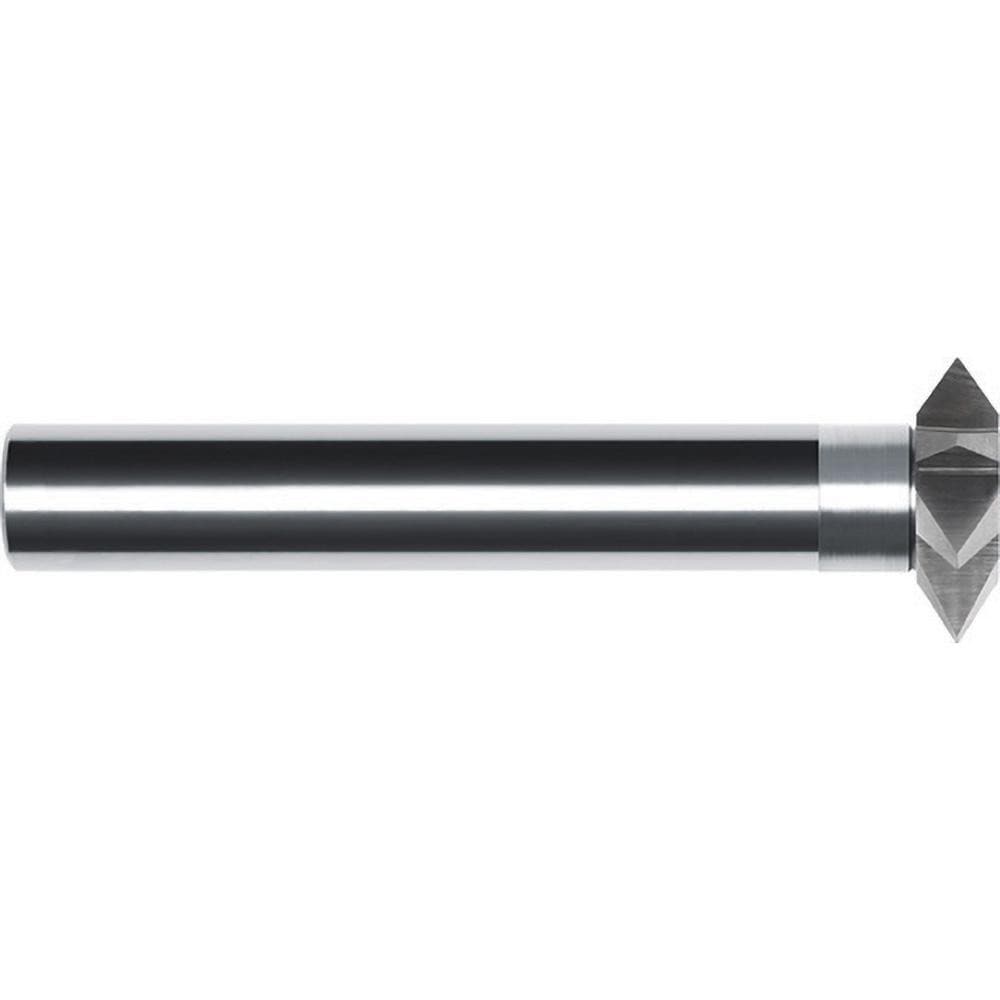

Single Profile Thread Mills; Maximum Threads Per Inch: 28; Minimum Pitch (Decimal Inch): 0.0909; Minimum Threads Per Inch: 11; Maximum Pitch (Decimal Inch): 0.0357; Material: Solid Carbide; Thread Type: Internal, External
Item #: 73516742
Brand: Internal Tool
Model #: 88-1110-C
Product Specifications
| Maximum Threads Per Inch | 28 |
| Minimum Pitch (Decimal Inch) | 0.0909 |
| Minimum Threads Per Inch | 11 |
| Maximum Pitch (Decimal Inch) | 0.0357 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 5/8-28; 5/8-11 |
| Thread Depth (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 1/4 |
| Minimum Nominal Diameter (Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.2500 |
| Series | 88 |
| Thread Standard | UN |
| Number Of Flutes | 6 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | AlTiN |
| UNSPSC Code | 23242117 |
| Maximum Threads Per Inch | 28 |
| Minimum Pitch (Decimal Inch) | 0.0909 |
| Minimum Threads Per Inch | 11 |
| Maximum Pitch (Decimal Inch) | 0.0357 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 5/8-28; 5/8-11 |
| Thread Depth (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 1/4 |
| Minimum Nominal Diameter (Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.2500 |
| Series | 88 |
| Thread Standard | UN |
| Number Of Flutes | 6 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | AlTiN |
| UNSPSC Code | 23242117 |
| MSC Part # | 73516742 |
| Mfr Part # | 88-1110-C |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
