Brand: Ingersoll Cutting Tools / Part #: 5140186
Item #: 93391514
Brand: Ingersoll Cutting Tools
Model #: 5140186
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 1.0000 |
| Diameter (Decimal Inch) | 1.0000 |

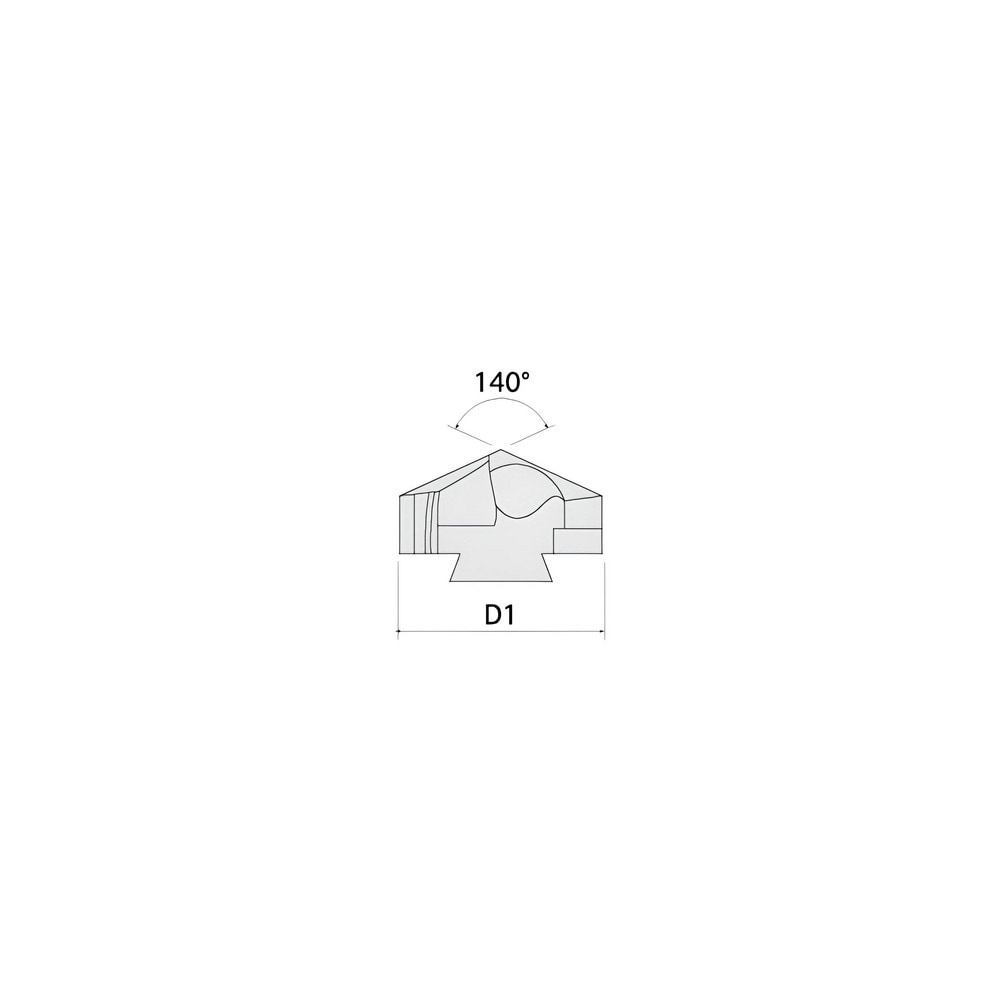

| Point Angle | 140.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2005 |
| Cutting Direction | Right Hand |
| Series | YBB |
| Coating Process | PVD |
| Insert Seat Size | 25 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Height (Decimal Inch) | 0.417000 |
| Overall Length/Projection (Decimal Inch) | 0.4170 |
| Head Length (Decimal Inch) | 0.4170 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Twist |
| ISO Number | YBB2540R01 IN2005 |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Flute Length (mm) | 6.38 |
| Point Type | Square; Single Point |
| Spiral Type | Regular |
| Style | YBB |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
