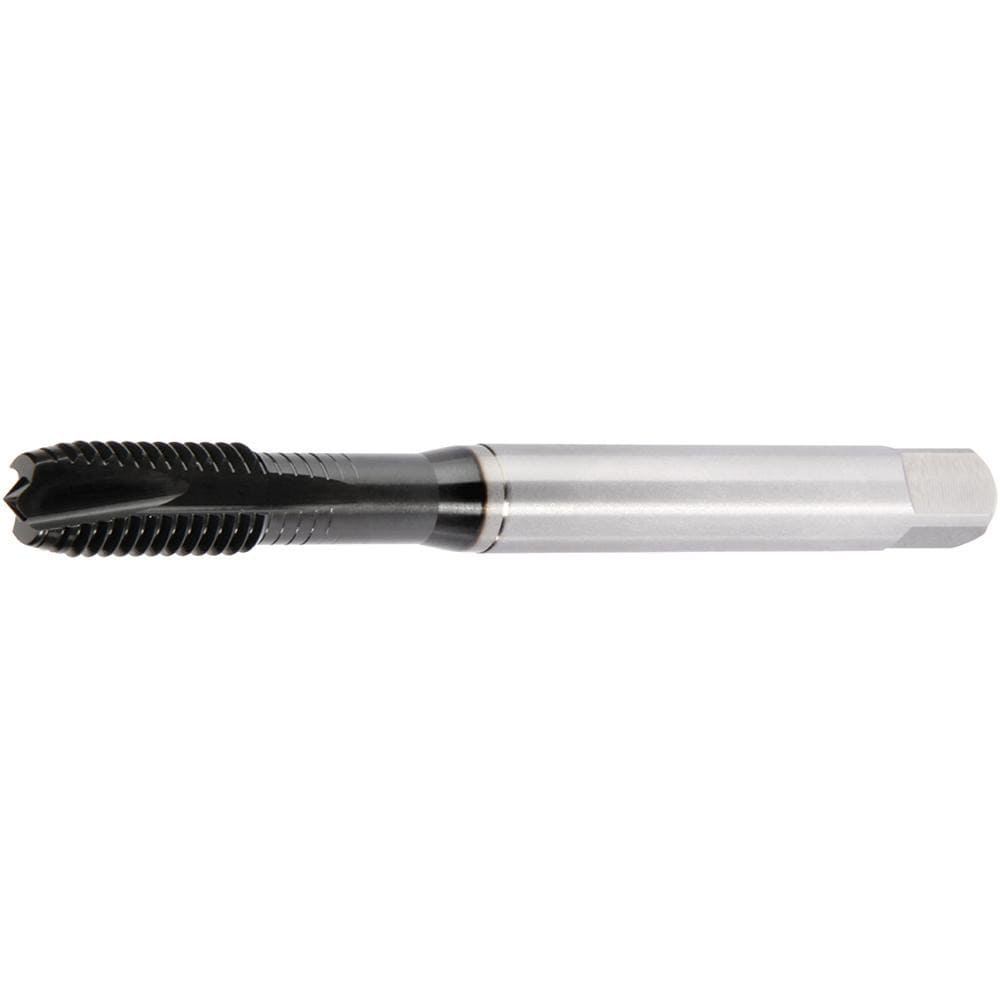

Brand: Widia / Part #: 4160039
Item #: 93314144
Brand: Widia
Model #: 4160039
Product Specifications
| Thread Size (mm) | M6x1 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | DLC |
| Threads per Inch | 25 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 30.00 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | UNC |
| Material Grade | WN48EG |
| Thread Length (mm) | 17.00 |
| Overall Length (mm) | 80.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.90 |
| Material Application | Non-Ferrous Metal |
| Series | GT70 |
