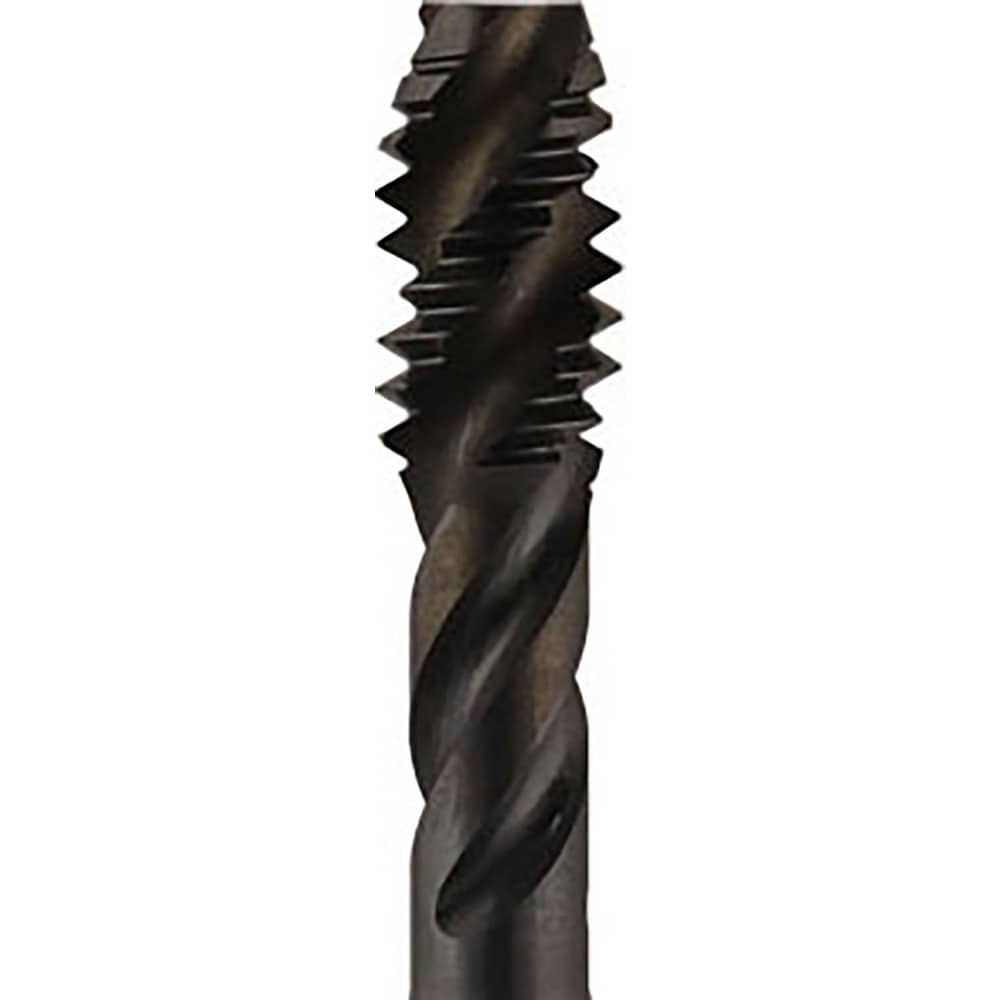

Spiral Flute Tap: UNC, 3 Flute, 2-1/2 - 3-1/2, 2B Class of Fit, Vanadium High-Speed Steel, Oxide Finish
Item #: 88407341
Brand: Yamawa
Model #: 384647
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | Vanadium High-Speed Steel |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Proprietary Coating/Finish | Oxide |
| Primary Workpiece Material | Cast Iron; Steel |
| Threads per Inch | 16 |
| Overall Length (Inch) | 2-15/16 |
| Thread Length (Decimal Inch) | 0.5510 |
| Thread Pitch (Decimal Inch) | 16.0000 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Tapping Depth (Decimal Inch) | 1.2500 |
| Flute Style | Spiral |
| UNSPSC Code | 23241600 |
| Country of Origin | Japan |
