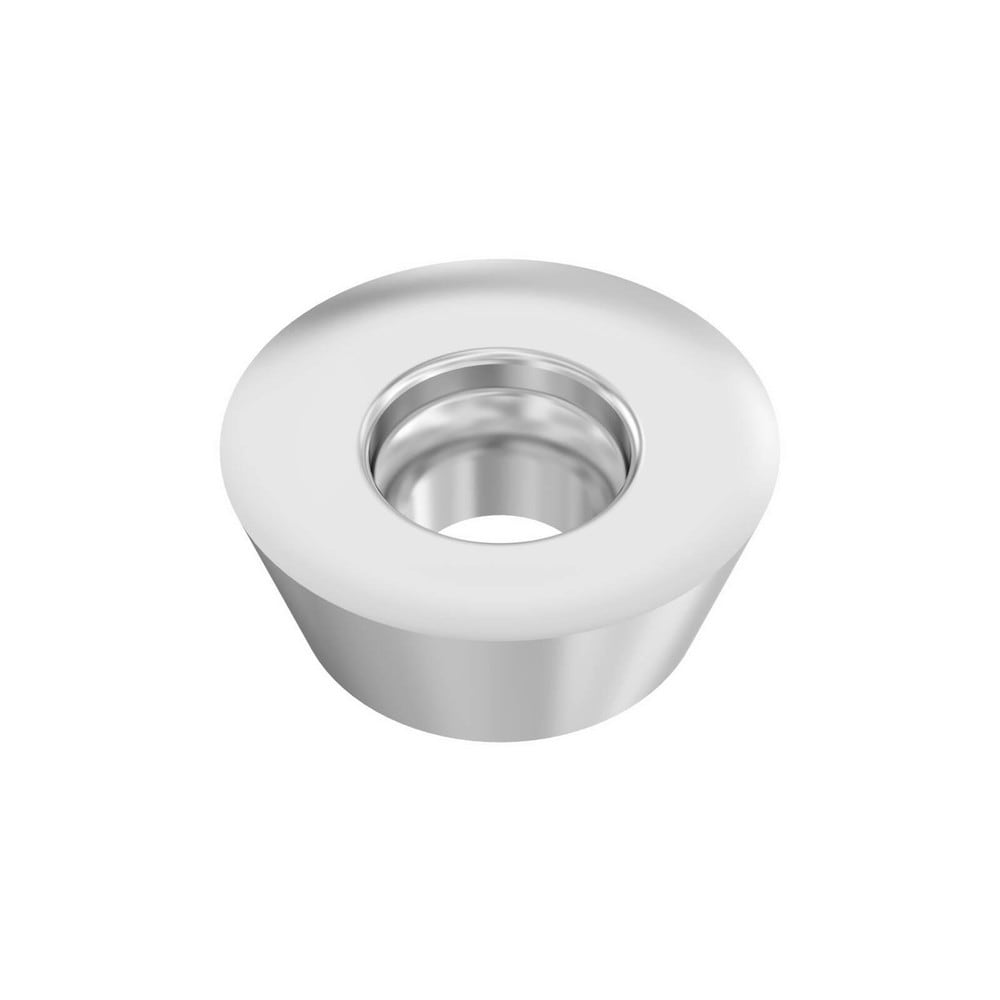

Milling Insert: RDHT0803M0-E03 MP3501, Carbide
Item #: 86381225
Brand: Seco
Model #: 10198690
Product Specifications
| Insert Style | RDHT |
| Insert Size | 08 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | MP3501 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Coating/Finish | TiCN; Chrome; Al2O3 |
| Relief Angle | 15.000 |
| Insert Size Code | 0803M0 |
| Material Grade | K40; K20; K30; P30; P40; P20 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Series | RDHT |
| Coating Process | Duratomic |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3150 |
| Rake | Positive |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Ansi Code | RDHT0803M0-E03 |
| Iso Code | RDHT0803M0-E03 |
| Standards | ISO; ANSI |
| Rake Angle | 20.000 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 10198690 |
| Cutter Series Compatibility | R217/220.29-04; R335.18; R335.29 |
| Chip Breaker | E03 |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Material Application | Steel |
| Insert Holding Method | Screw |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3150 |
| Country of Origin | Sweden |
