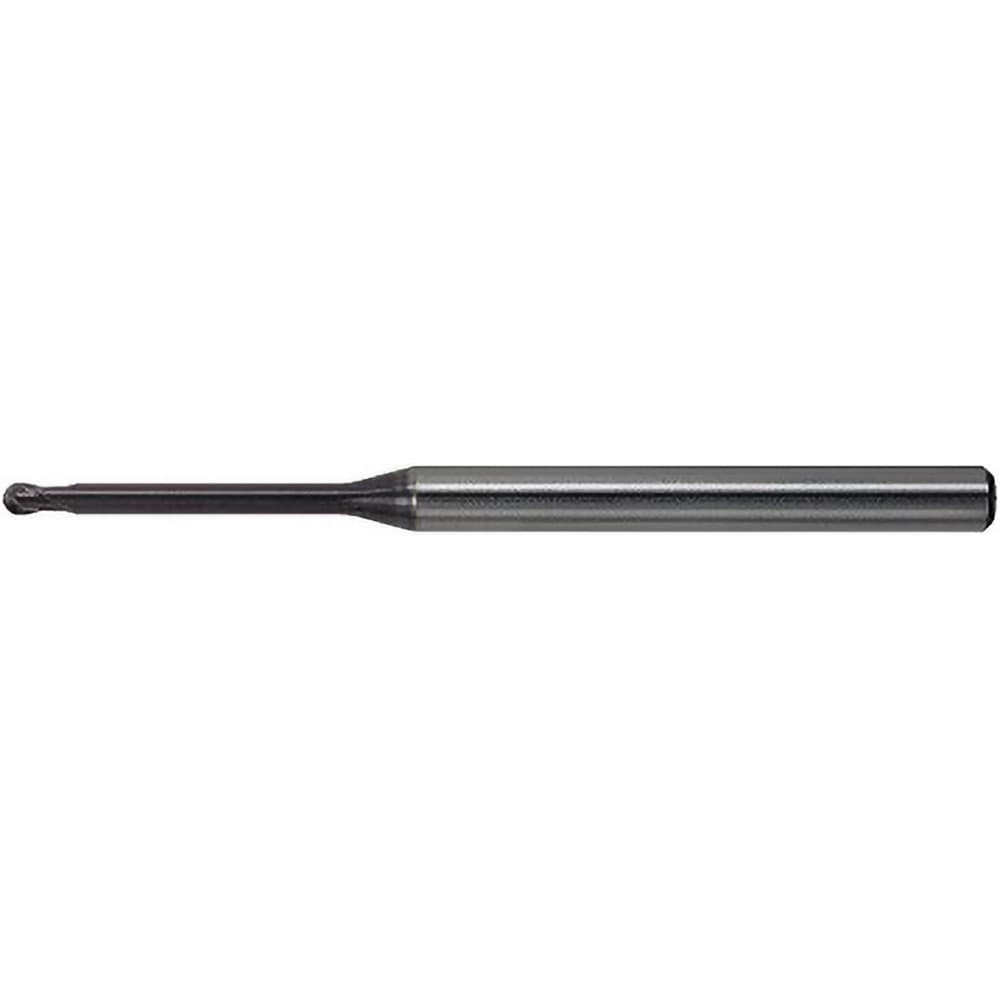

Ball End Mill: 3/16" Dia, 3/16" LOC, 2 Flute, Solid Carbide
Item #: 87731857
Brand: Mitsubishi
Model #: 613739
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (mm) | 4.76 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/16 |
| Length of Cut (mm) | 4.76 |
| Coating/Finish | AlTiSiN |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (mm) | 76.20 |
| Chipbreaker | No |
| Undercutting | No |
| Length Type | Long |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 6.35 |
| Neck Diameter (Decimal Inch) | 0.1835 |
| Neck Diameter (mm) | 4.66 |
| Nose Radius (mm) | 2.38 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Neck Length (Inch) | 1-1/8 |
| Neck Length (Decimal Inch) | 1.1250 |
| Neck Length (mm) | 28.58 |
| Shank Diameter Tolerance | h5 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | VF |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1875 |
| System Of Measurement | Fractional Inch |
| Country of Origin | Japan |
