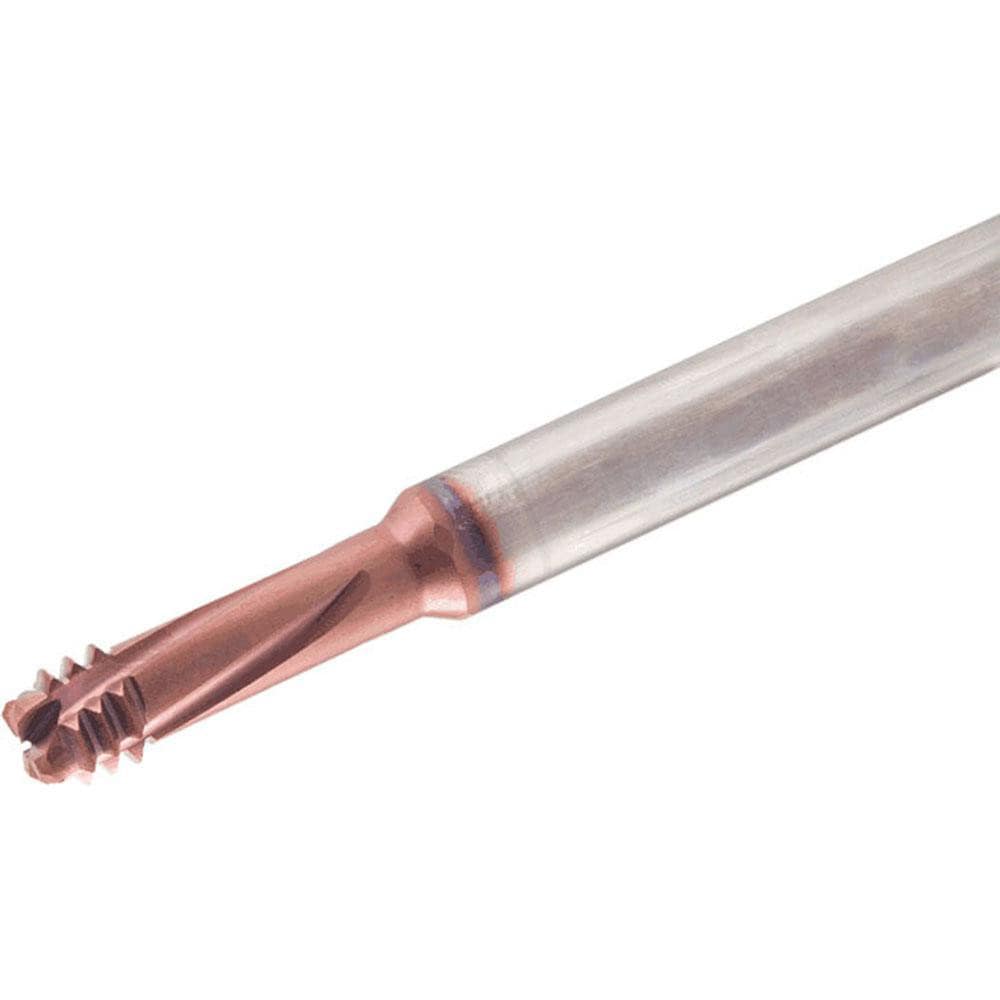

Helical Flute Thread Mill: M12x1.75, Internal, 4 Flute, 10.00 mm Shank Dia, Solid Carbide
Item #: 06219216
Brand: Tungaloy
Model #: 5667200
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M12x1.75 |
| Thread Type | Internal |
| Shank Diameter (mm) | 10.00 |
| Cutting Diameter (mm) | 9.00 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3543 |
| Length of Cut (mm) | 26.00 |
| Overall Length (mm) | 73.00 |
| Flute Direction | Left Hand |
| Material Grade | AH725 |
| Series | MTECD |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Thread Length (mm) | 4.15 |
| Thread Depth (mm) | 26.00 |
| UNSPSC Code | 23242117 |
