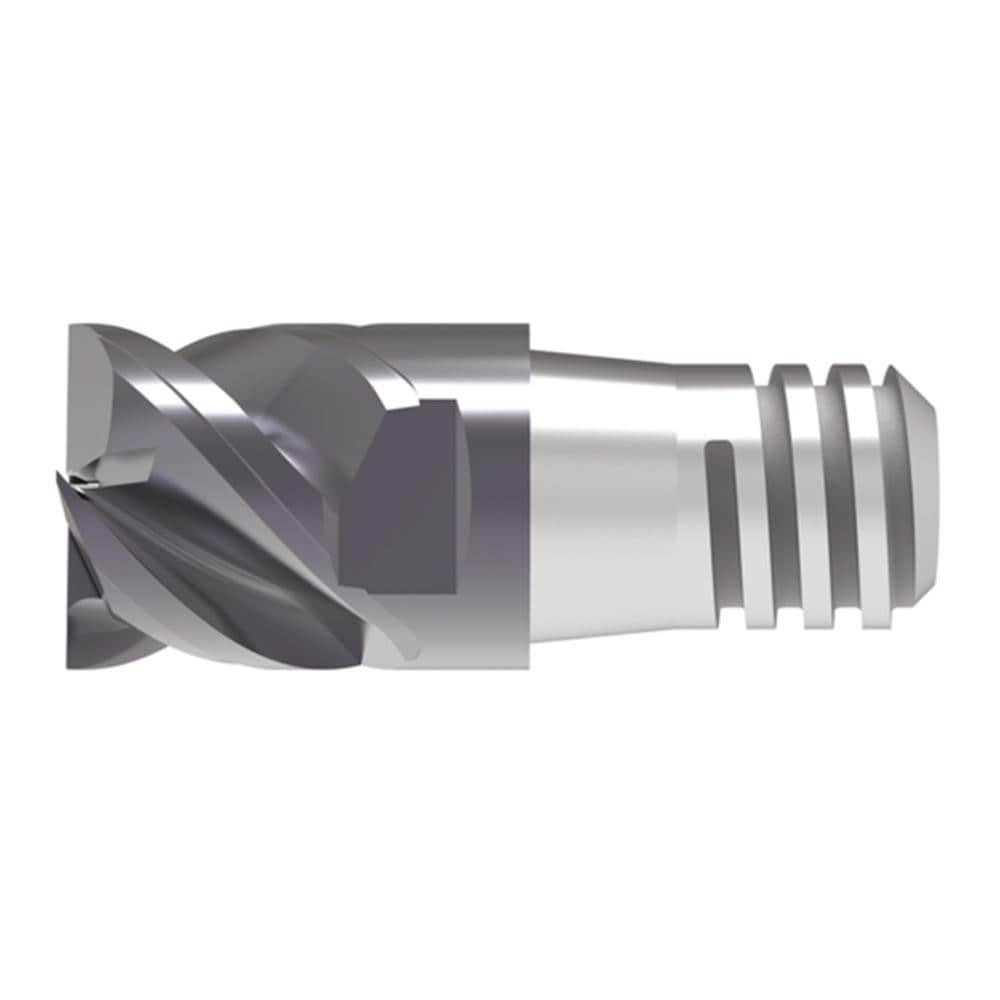

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 9.70; Length of Cut (mm): 7.5000; Number Of Flutes: 4
Item #: 06614945
Brand: WNT
Model #: 5287109700
Product Specifications
| Mill Diameter (mm) | 9.70 |
| Length of Cut (mm) | 7.5000 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 22.4000 |
| Corner Radius (mm) | 0.32 |
| Coating/Finish | APA72S |
| End Mill Material | Solid Carbide |
| Centercutting | No |
| Connection Type | SAM |
| Flute Type | Variable |
| Series | 52871 |
| Helix Angle | 36 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Variable Index | No |
| UNSPSC Code | 27112803 |
