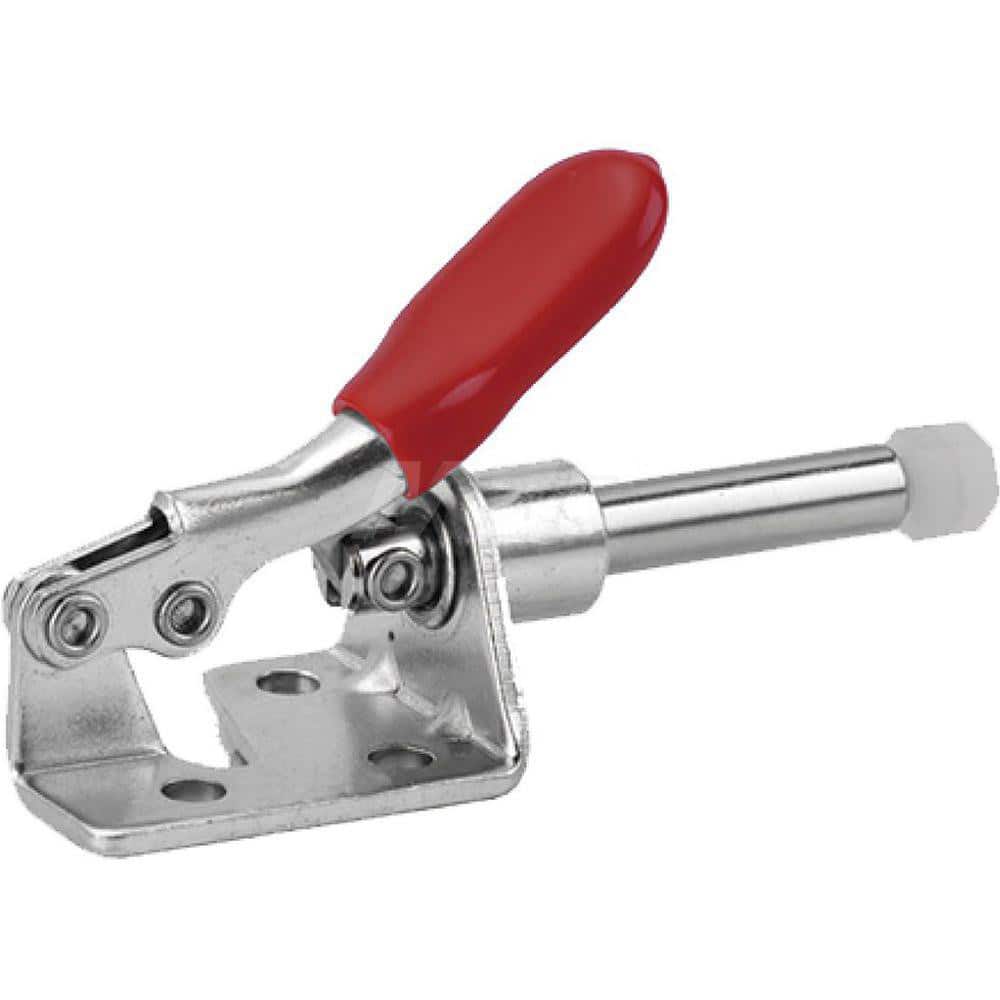

Standard Straight Line Action Clamp: 100 lb Load Capacity, 0.66″ Plunger Travel, Flanged Base 3 Mounting Hole, 0.17″ Hole, Contoured Plastic Softgrip & Straight Handle
Item #: 14538474
Brand: ShopForce
Model #: 30280
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 100.00 |
| Load Capacity (N) | 444.82 |
| Load Capacity | 100.00 |
| Plunger Travel (Decimal Inch) | 0.6600 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M4x0.7 |
| Plunger Centerline Height (Inch) | 1/2 |
| Plunger Diameter (Inch) | 1/4 |
| Base Style | Flanged |
| Handle Style | Contoured Plastic Softgrip; Straight |
| Material | Steel |
| Overall Length (Decimal Inch) | 2.6800 |
| Overall Height (Decimal Inch) | 1.6100 |
| Base Length (Decimal Inch) | 1.3100 |
| Base Width (Inch) | 1.0600 |
| Handle Color | Red |
| Length Distance Between Mount Holes (Inch) | 0.6300 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Mounting Hole Diameter (Decimal Inch) | 0.1700 |
| Jam Nut Height (Inch) | 1/2 |
| Jam Nut Hex Size (Decimal Inch) | 0.2750 |
| Jam Nut Thread Size | M6x1.00 |
| Clamp Type | Hold Down |
| Holding Capacity (kg) | 45.36 |
| Holding Capacity (N) | 444.82 |
| Handle Movement (Degrees) | 180 |
| Spindle Length (Decimal Inch) | 0.7800 |
| Number Of Mounting Holes | 3 |
| Holding Capacity (Lb.) | 100.00 |
