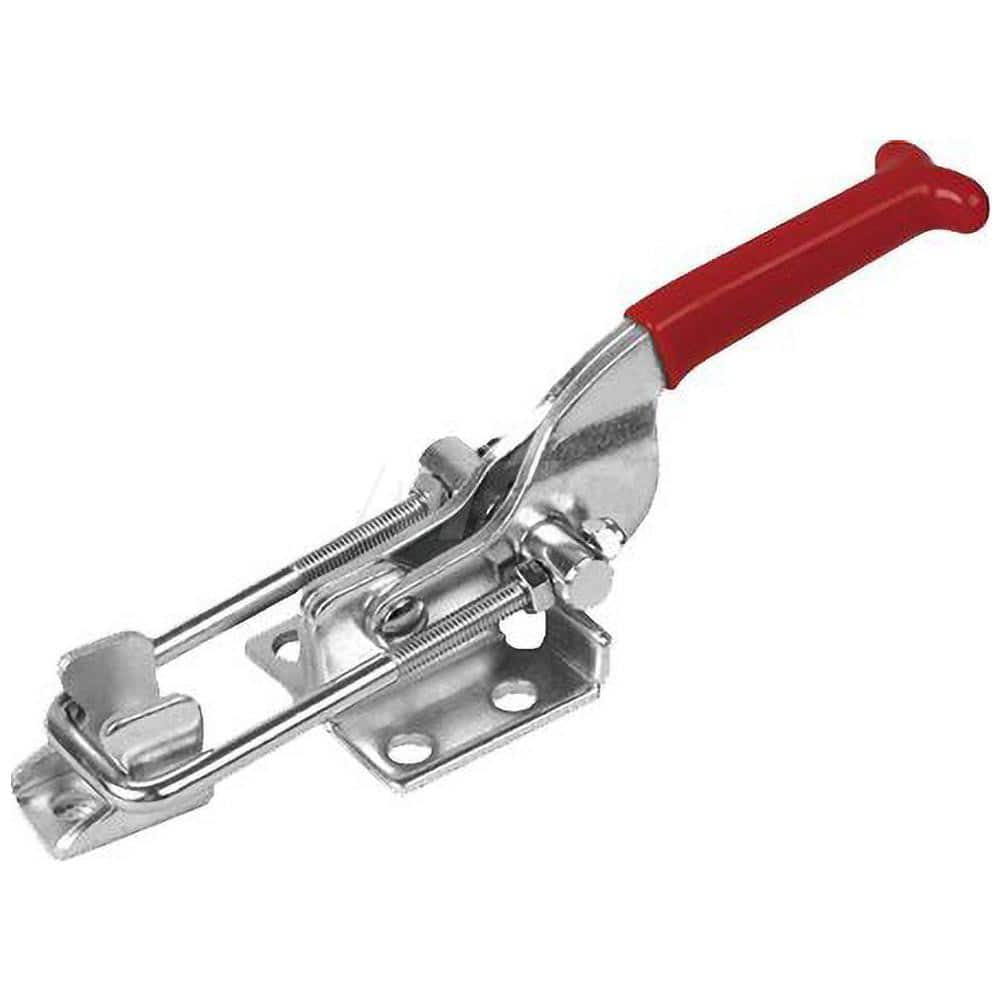

Pull-Action Latch Clamp: Vertical, 700 lb, U-Hook, Flanged Base 6.37″ OAL, Straight Handle, Steel
Item #: 14537021
Brand: ShopForce
Model #: 40200
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 3113.75 |
| Load Capacity (Lb. - 3 Decimals) | 700.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 6.3700 |
| Overall Length (mm) | 162.00 |
| Overall Height (Mm - 5 Decimals) | 41.40 |
| Overall Height (Decimal Inch) | 1.6300 |
| Handle Color | Red |
| Base Length | 1.56 |
| Base Length (mm) | 39.62 |
| Base Width (Inch) | 1.7500 |
| Base Width | 44.45 |
| Mounting Hole Diameter (mm) | 6.35 |
| Mounting Hole Diameter | 0.2500 |
| Width Distance Between Mount Holes (mm) | 31.75 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7500 |
| Length Distance Between Mount Holes (mm) | 19.05 |
| Width Distance Between Mounting Holes | 1.2500 |
