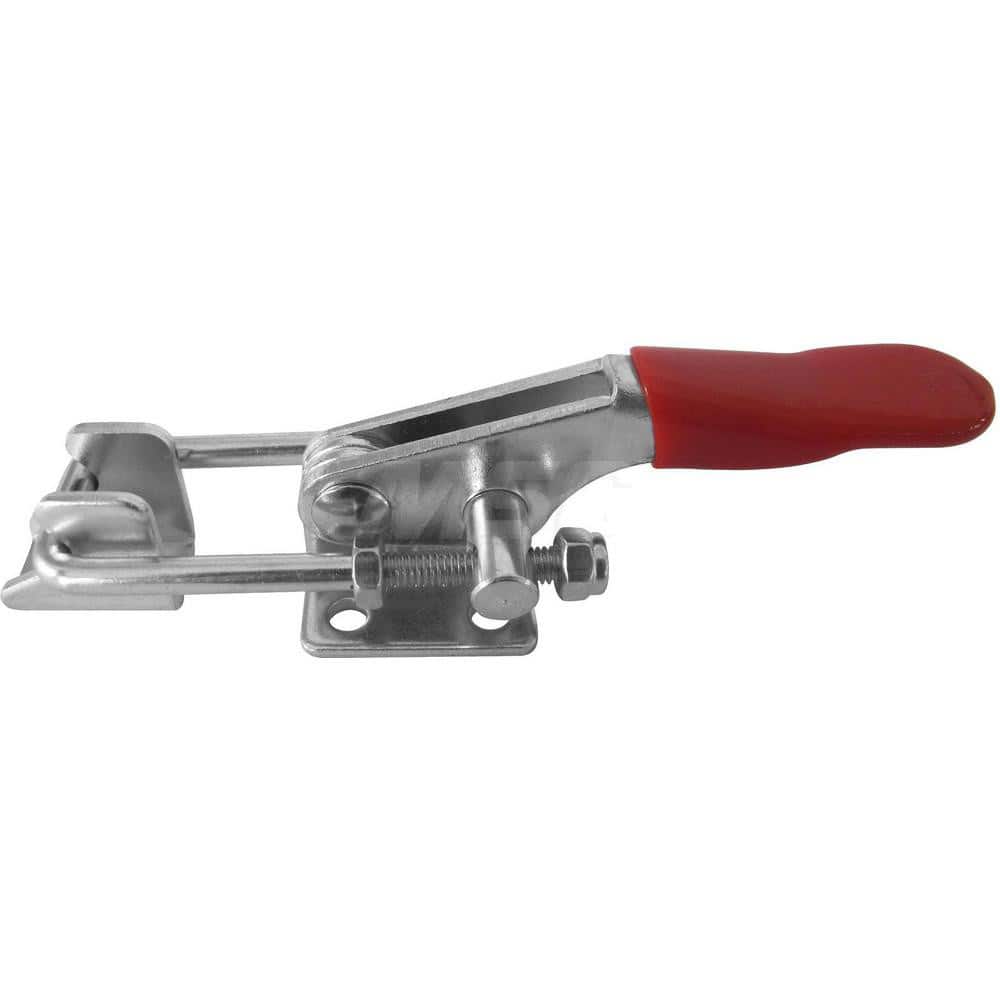

Pull-Action Latch Clamp: Vertical, 360 lb, U-Hook, Flanged Base 3.54″ OAL, Straight Handle, Steel
Item #: 14536825
Brand: ShopForce
Model #: 40240
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 1601.35 |
| Load Capacity (Lb. - 3 Decimals) | 360.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 3.5400 |
| Overall Length (mm) | 90.00 |
| Overall Height (Mm - 5 Decimals) | 29.21 |
| Overall Height (Decimal Inch) | 1.1500 |
| Handle Color | Red |
| Base Length | 1.03 |
| Base Length (mm) | 26.16 |
| Base Width (Inch) | 1.1100 |
| Base Width | 28.19 |
| Mounting Hole Diameter (mm) | 4.32 |
| Mounting Hole Diameter | 0.1700 |
| Width Distance Between Mount Holes (mm) | 19.05 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Width Distance Between Mounting Holes | 0.7500 |
