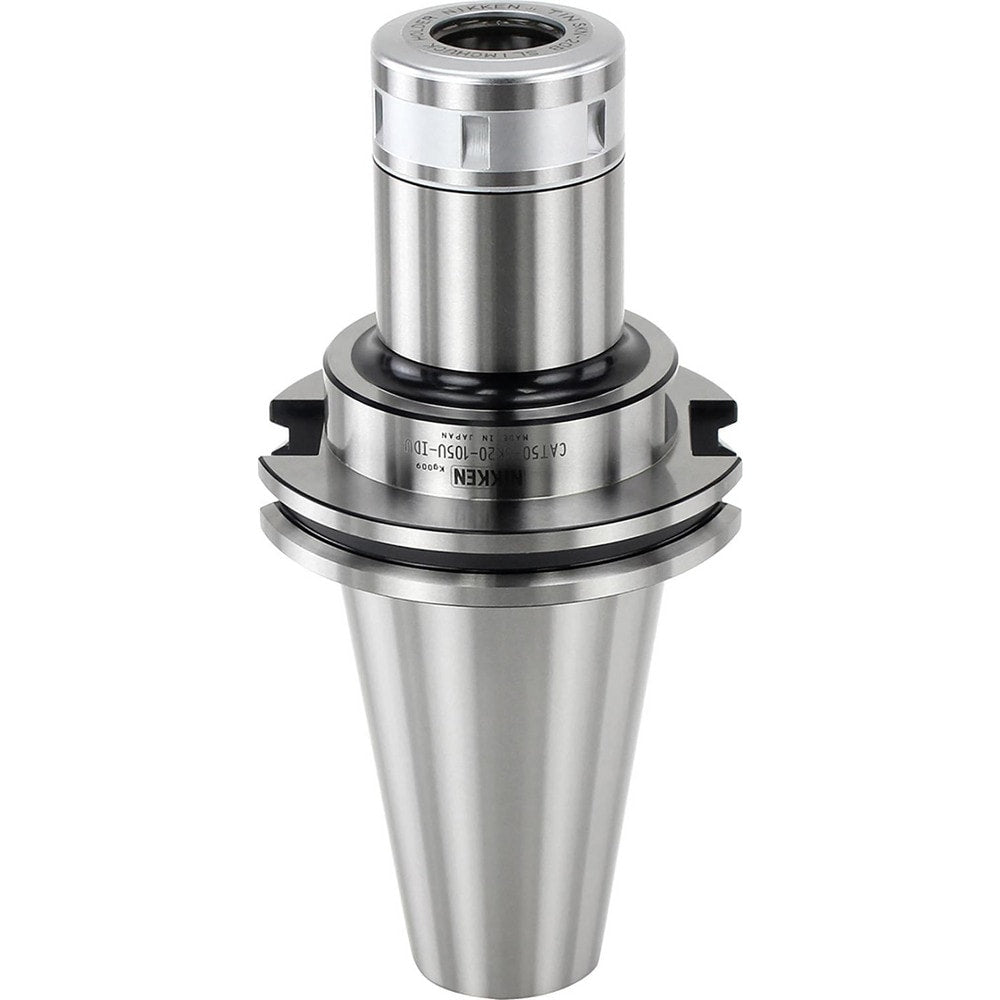

Collet Chuck: 0.1380 to 0.7870" Capacity, Slim Chuck Collet
Item #: 88405550
Brand: Lyndex-Nikken
Model #: CAT50-SK20-105U-IDU
Product Specifications
| Collet System | Slim Chuck |
| Collet Series | SK20 |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 4.1300 in |
| Minimum Collet Capacity (Decimal Inch) | 0.1380 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 4.13 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9100 |
| UNSPSC Code | 27112808 |
| Thread Size (Inch) | 1-8 |
| Country of Origin | Japan |
