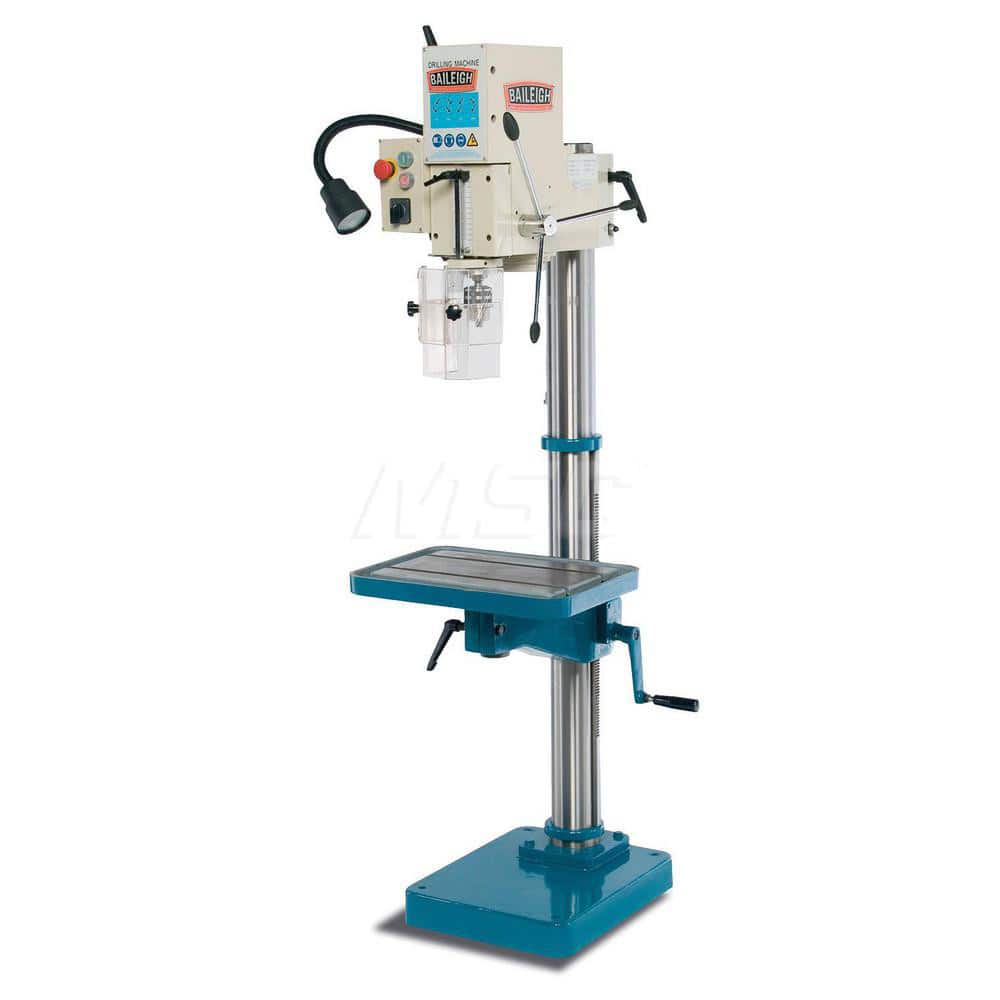

Floor Drill Press: 10″ Swing, 1.5 hp, 110V, 1 Phase
Item #: 14510028
Brand: Baileigh
Model #: 1002827
Product Specifications
| Stand Type | Floor |
| Swing Distance (Decimal Inch) | 10.0000 |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 10 |
| Spindle Speed Control | Geared Head |
| Phase | 1 |
| Spindle Taper Size | 3MT |
| Maximum Spindle Speed (RPM) | 1740 |
| Spindle Travel Length (Decimal Inch) | 5.3000 |
| Column Diameter (Inch) | 4 |
| Drilling Capacity in Steel (Inch) | 1 |
| Drilling Capacity in Cast Iron (Inch) | 1 |
| Table Slot Size (Decimal Inch) | 0.6250 |
| Table Length (Decimal Inch) | 19.7500 |
| Voltage | 110 |
| Horsepower | 1.5 |
| Base Length (Inch) | 15-1/2 |
| Base Width (Inch) | 19-1/2 |
| Overall Height (Decimal Inch) | 29.00 |
| Overall Height (Inch) | 29 |
| Overall Length (Decimal Inch) | 23.0000 |
| Overall Depth (Inch) | 66 |
| Overall Depth (Inch) | 66.0000 |
