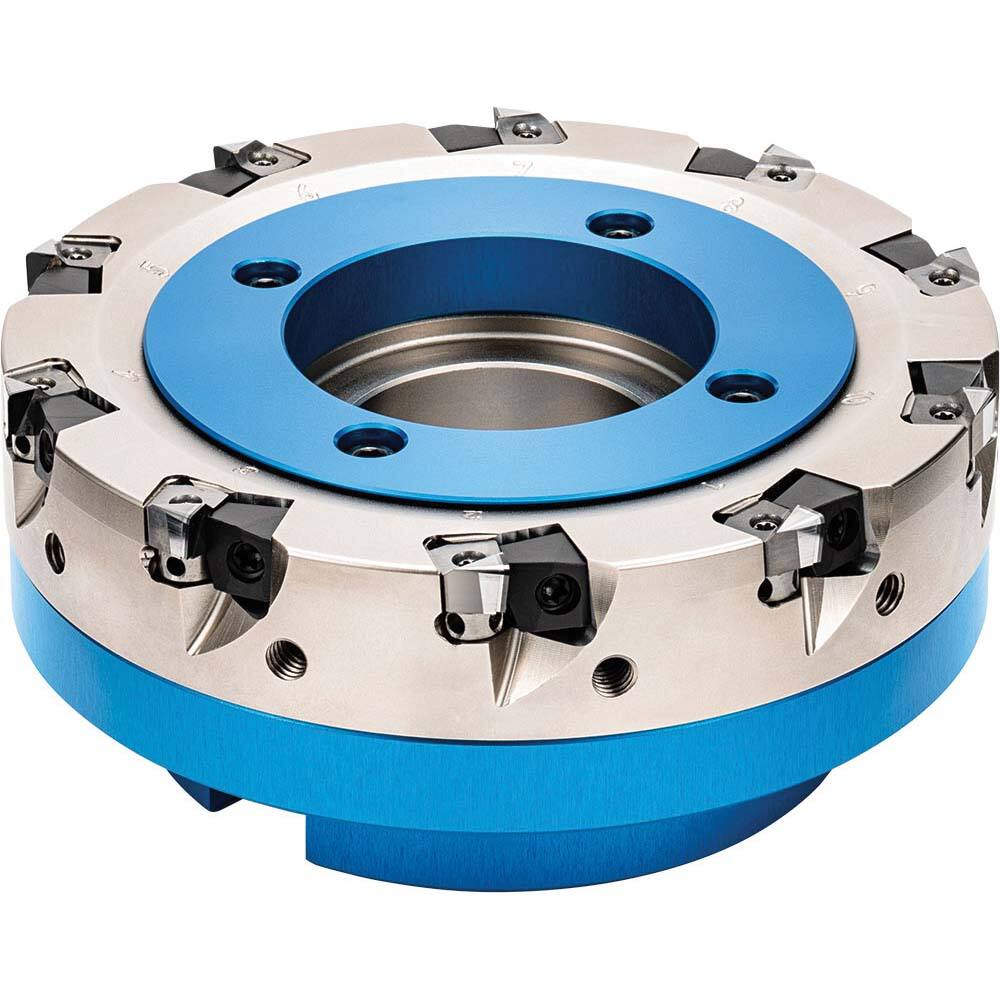

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Cutting Diameter (Decimal Inch): 3.1496 ; Arbor Hole Diameter (Inch): 1 ; Lead Angle: 90 ; Overall Height (mm): 50.00000 ; Insert Compatibility: ENET0905?
Item #: 14312003
Brand: Kyocera
Model #: 8858652
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 80.00 ; Cutting Diameter (Decimal Inch): 3.1496 ; Arbor Hole Diameter (Inch): 1 ; Lead Angle: 90 ; Overall Height (mm): 50.00000 ; Insert Compatibility: ENET0905?
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00000 |
| Insert Compatibility | ENET0905? |
| Series | MFAH |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw or Clamp |
| Cutter Style | MFAH |
| Number of Flutes | 10 |
| Keyway Width (Inch) | 0.375 |
| Keyway Depth (mm) | 6.00 |
| Maximum RPM | 14600.000 |
| Pitch | Standard |
| ISO Number | MFAH080RA-10T-SF |
| Counterbore Diameter (Decimal Inch) | 0.7874 |
| Toolholder Material | Steel and Aluminium |
