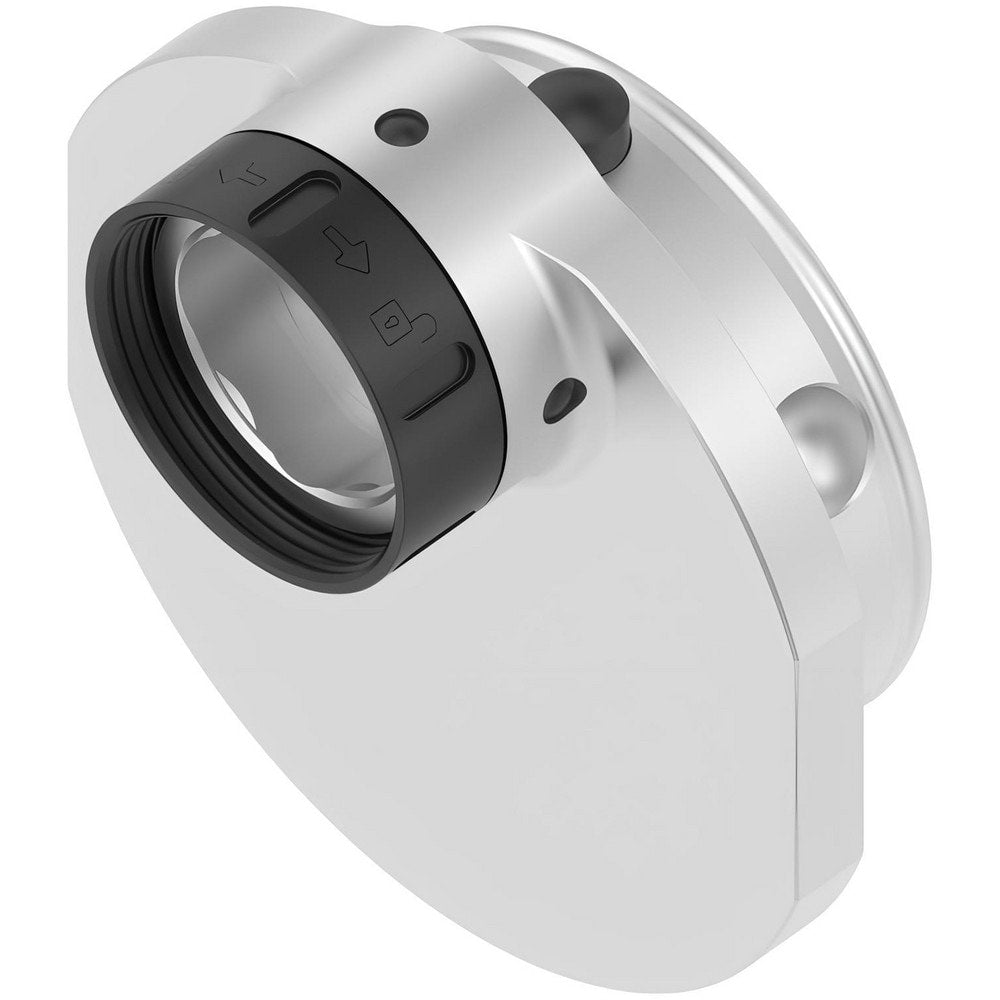

Boring Bar Holders & Adapters; Inside Modular Connection Size: BA150; Bore Diameter (mm): 50.0000; Bore Diameter (Inch): 2; Bore Diameter (Decimal Inch): 1.9685; Bore Depth (mm): 32.00; Bore Depth (Decimal Inch): 1.2598; Outside Modular Connection Size: G
Item #: 82880501
Brand: Seco
Model #: 10144412
Product Specifications
| Inside Modular Connection Size | BA150 |
| Bore Diameter (mm) | 50.0000 |
| Bore Diameter (Inch) | 2 |
| Bore Diameter (Decimal Inch) | 1.9685 |
| Bore Depth (mm) | 32.00 |
| Bore Depth (Decimal Inch) | 1.2598 |
| Outside Modular Connection Size | GL50 |
| Connection Size | 50 mm |
| Body Diameter (mm) | 150.000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 150.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 50.00 |
| Shank Diameter (mm) | 150.0000 |
| Through Coolant | Yes |
| Lock Screw Size (mm) | 50.00 |
| Projection (mm) | 32.000 |
| Coolant Type | Internal |
| Material | Steel |
| Overall Length (mm) | 64.4 |
| Type | Steadyline |
| Body Length (Decimal Inch) | 0.8465 |
| Coolant Screw Size (mm) | 0.00 |
| Lock Screw Compatibility | Yes |
| Manufacturer's Part Number | 10144412 |
| Additional Information | Steadyline Is A Modular Anti-Vibration Tooling System Consisting Of Dampened Bars, Providing An Easily Exchangeable Head With The Accurate And Reliable GL Interface. To Add Applicability, The Bars Are Highly Capable Both For Problem-Free Long-Overhang Internal Turning As Well As Rotating Boring Applications. |
| Body Length | 21.500 |
| UNSPSC Code | 27112800 |
| Country of Origin | France |
