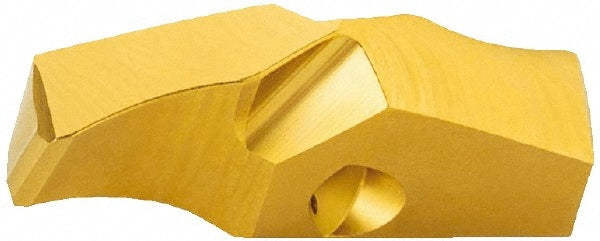

Replaceable Drill Tips: 1047 53/64" 140D TIN, 0.8280" Dia, 21.03 mm Dia, 140 deg Point
Item #: 72306707
Brand: Guhring
Model #: 9010470210300
Product Specifications
| Cutting Diameter (Inch) | 53/64 |
| Cutting Diameter (Decimal Inch) | 0.8280 |
| Cutting Diameter (mm) | 21.03 |
| Tip Material | Solid Carbide |
| Material Grade | K20/K40 |
| Series | 1047 |
| Coating Process | PVD |
| Insert Seat Size | 2.2 |
| Functional Length (Decimal Inch) | 0.1931 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3467 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 1047 |
| UNSPSC Code | 23242105 |
| Applications | Steel |
| Coating/Finish | TiN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Cutting Diameter (Inch) | 53/64 |
| Cutting Diameter (Decimal Inch) | 0.8280 |
| Cutting Diameter (mm) | 21.03 |
| Tip Material | Solid Carbide |
| Material Grade | K20/K40 |
| Series | 1047 |
| Coating Process | PVD |
| Insert Seat Size | 2.2 |
| Functional Length (Decimal Inch) | 0.1931 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3467 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 1047 |
| UNSPSC Code | 23242105 |
| Applications | Steel |
| Coating/Finish | TiN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| MSC Part # | 72306707 |
| Mfr Part # | 9010470210300 |
| Country of Origin Country of Origin is subject to change | Germany |
