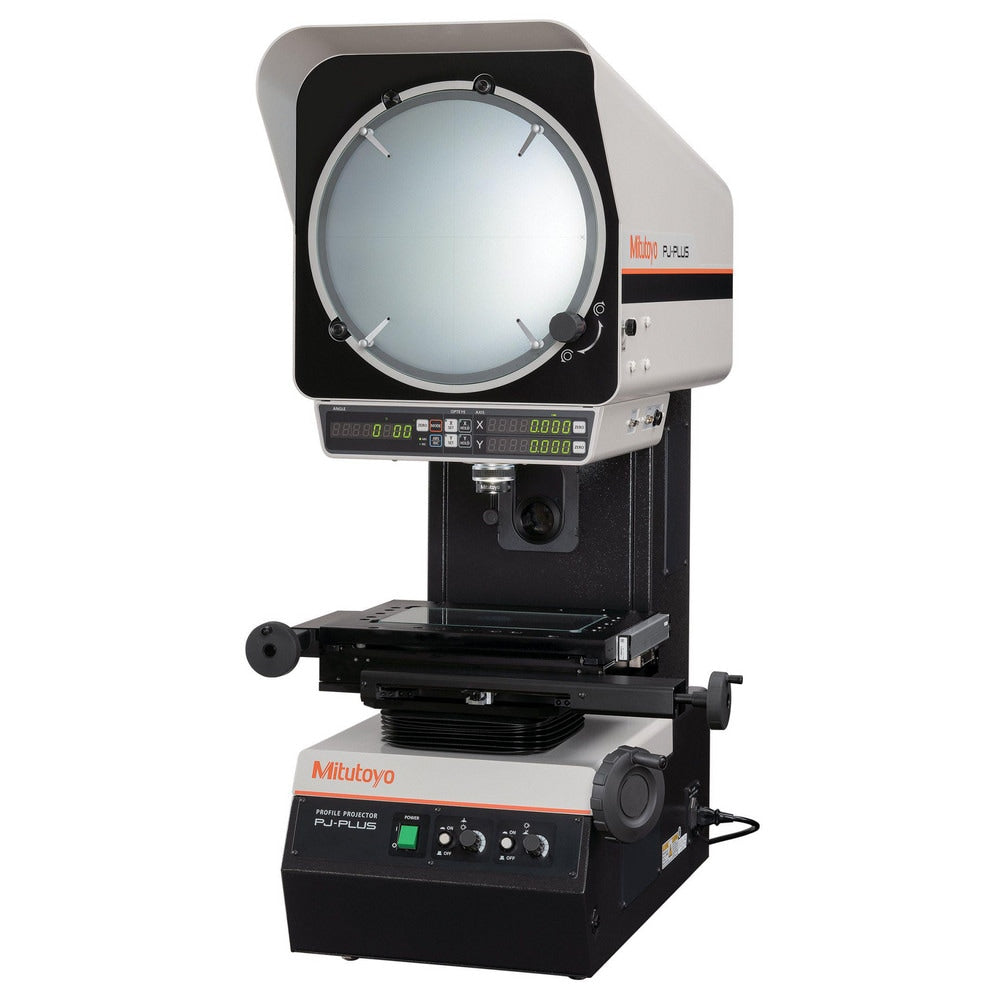

Optical Comparators & Profile Projectors; Image Type: Inverted; Orientation: Vertical; Magnification: 10x; Screen Diameter (Decimal Inch): 12.4000; Y-Axis Stage Travel Range (Inch): 4
Item #: 73597957
Brand: Mitutoyo
Model #: 302-802-10A
Product Specifications
| Image Type | Inverted |
| Orientation | Vertical |
| Magnification | 10x |
| Screen Diameter (Decimal Inch) | 12.4000 |
| Y-Axis Stage Travel Range (Inch) | 4 |
| Resolution (Decimal Inch) | 0.0001 |
| Stage Length (Inch) | 9.4000 |
| Stage Width (Decimal Inch) | 5.5000 |
| Overall Width (Decimal Inch - 4 Decimals) | 34.0000 |
| Overall Length (Decimal Inch) | 51.0000 |
| Load Capacity (Lb. - 3 Decimals) | 17.600 |
| X Axis Stage Travel Range (Decimal Inch) | 8.0000 |
| UNSPSC Code | 31242200 |
| Image Type | Inverted |
| Orientation | Vertical |
| Magnification | 10x |
| Screen Diameter (Decimal Inch) | 12.4000 |
| Y-Axis Stage Travel Range (Inch) | 4 |
| Resolution (Decimal Inch) | 0.0001 |
| Stage Length (Inch) | 9.4000 |
| Stage Width (Decimal Inch) | 5.5000 |
| Overall Width (Decimal Inch - 4 Decimals) | 34.0000 |
| Overall Length (Decimal Inch) | 51.0000 |
| Load Capacity (Lb. - 3 Decimals) | 17.600 |
| X Axis Stage Travel Range (Decimal Inch) | 8.0000 |
| UNSPSC Code | 31242200 |
| MSC Part # | 73597957 |
| Mfr Part # | 302-802-10A |
| Country of Origin Country of Origin is subject to change | Japan |
