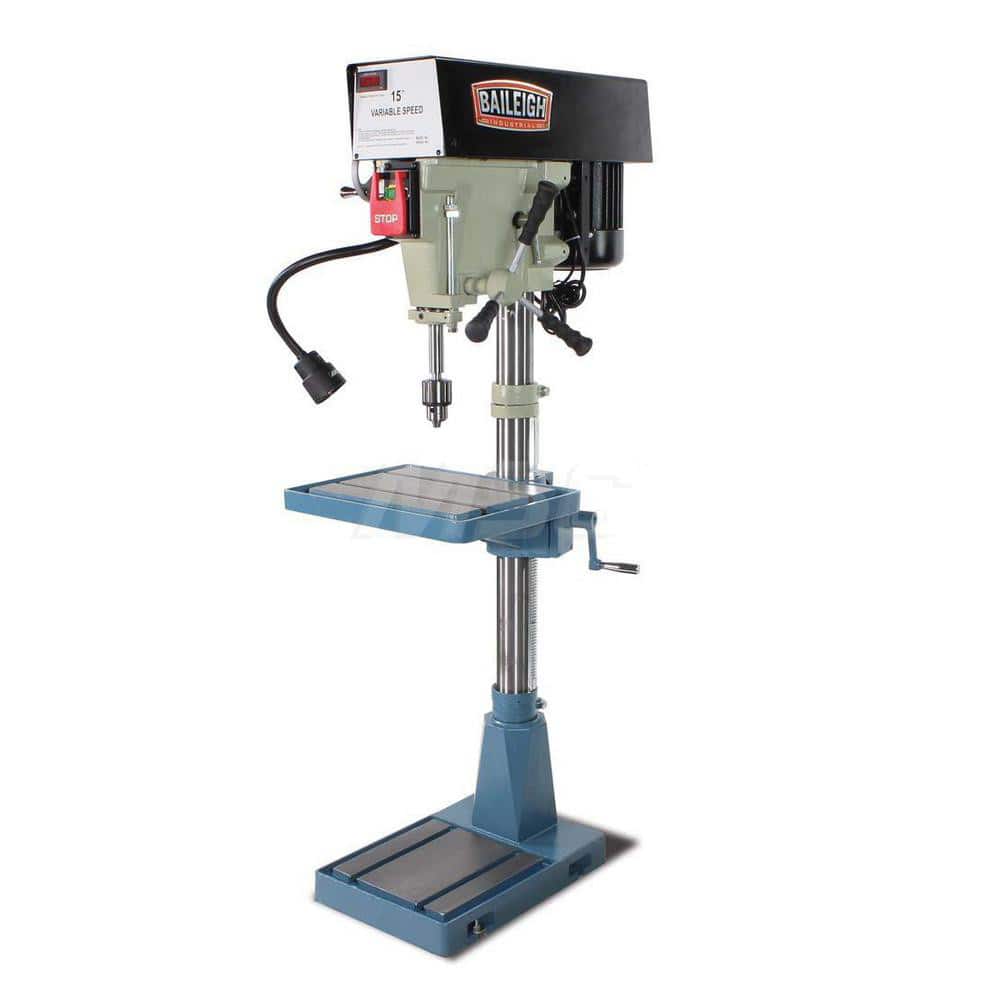

Floor Drill Press: 15″ Swing, 1 hp, 110 & 220V, 1 Phase 6″ Spindle Travel
Item #: 13717483
Brand: Baileigh
Model #: 1002989
Product Specifications
| Stand Type | Floor |
| Swing Distance (Decimal Inch) | 15.0000 |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 15 |
| Spindle Speed Control | Variable Speed |
| Phase | 1 |
| Spindle Taper Size | 3MT |
| Maximum Spindle Speed (RPM) | 5000 |
| Spindle to Table Distance (Inch) | 23-13/32 |
| Spindle Travel Length (Inch) | 6 |
| Column Diameter (Inch) | 4-1/2 |
| Drilling Capacity in Steel (Inch) | 5/8 |
| Drilling Capacity in Cast Iron (Inch) | 5/8 |
| Table Slot Size (Decimal Inch) | 0.6250 |
| Table Length (Decimal Inch) | 14.0000 |
| Voltage | 110; 220 |
| Horsepower | 1 |
| Overall Height (Decimal Inch) | 68.00 |
| Overall Height (Inch) | 68 |
| Overall Length (Decimal Inch) | 25.0000 |
| Overall Depth (Inch) | 36 |
| Overall Depth (Inch) | 36.0000 |
