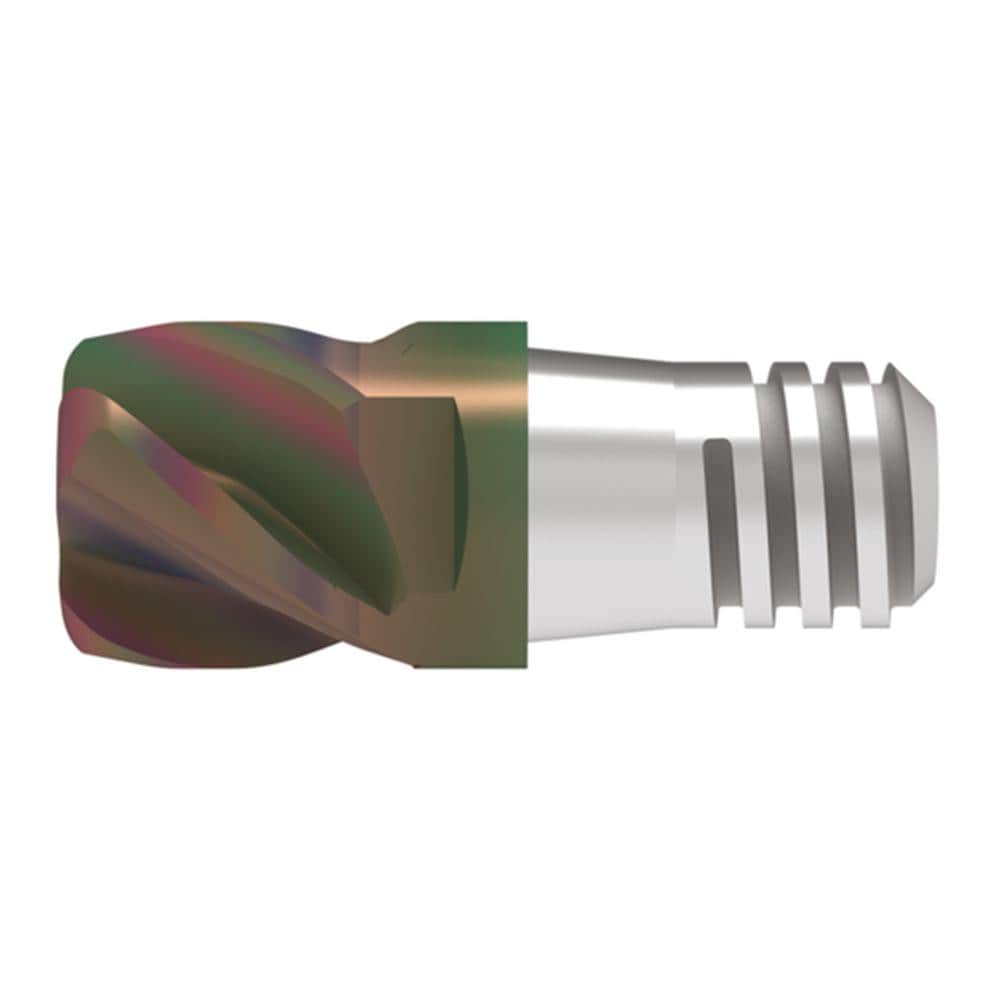

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 20.00; Length of Cut (mm): 15.0000; Number Of Flutes: 3
Item #: 06615918
Brand: WNT
Model #: 5287020020
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Length of Cut (mm) | 15.0000 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 42.2000 |
| Corner Radius (mm) | 2.00 |
| Coating/Finish | DLC |
| End Mill Material | Solid Carbide |
| Centercutting | Yes |
| Connection Type | SAM |
| Flute Type | Variable |
| Series | 52870 |
| Helix Angle | 43 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Variable Index | No |
| UNSPSC Code | 27112803 |
