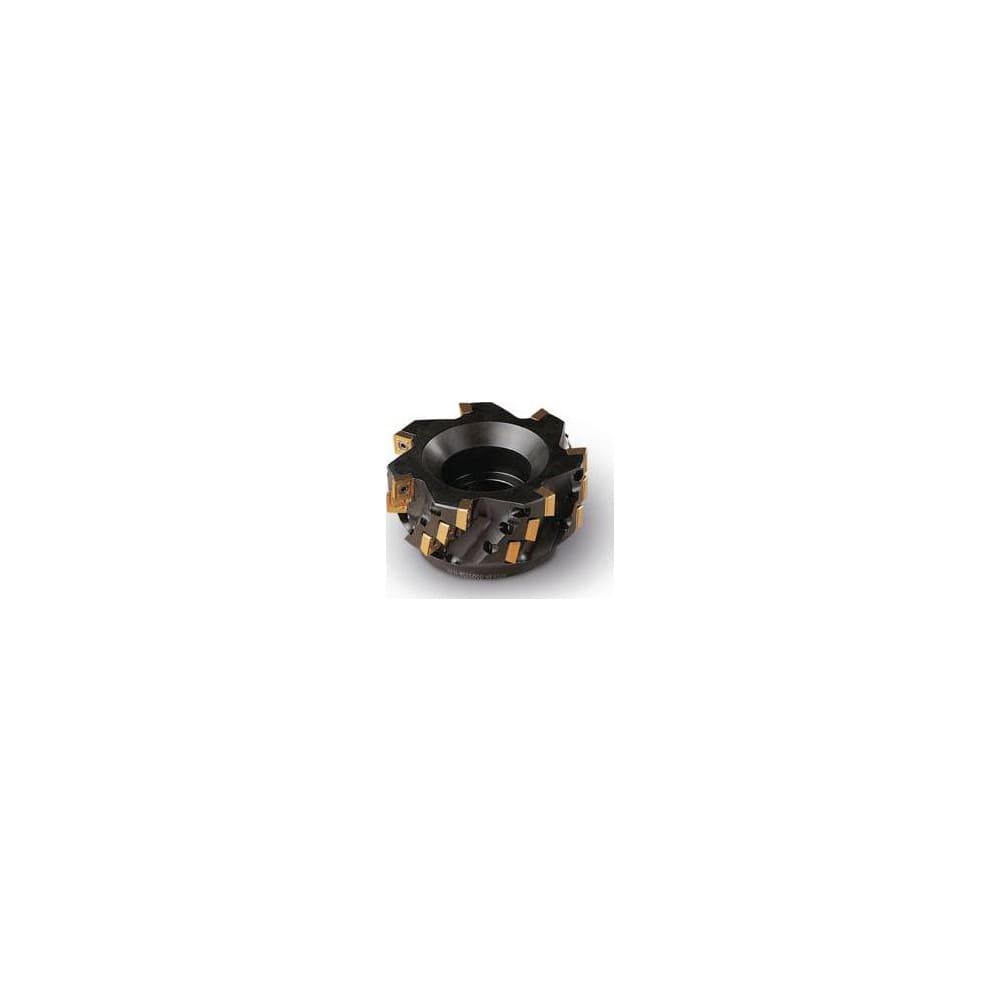

Indexable Square-Shoulder Face Mill: R220.69-00125050-15.7H, Uses 28, AC..1506 Inserts, No, Series R220.69
Item #: 13658166
Brand: Seco
Model #: 00094725
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Compatible Insert Size Code | AC..1506 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | R220.59 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | -8.5 |
| Series | R220.69 |
| Maximum RPM | 5200 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | High Performance |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 28 |
| Number Of Flutes | 7 |
