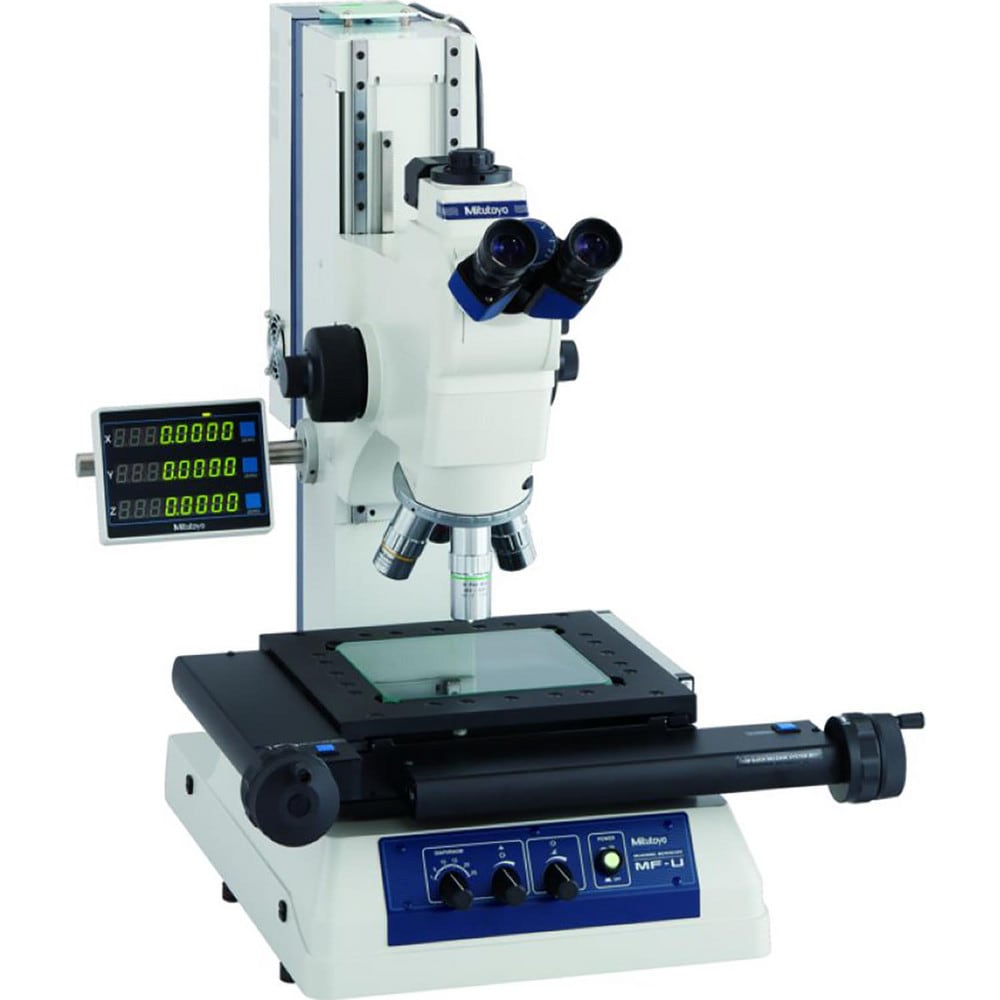

Microscopes; Microscope Type: Binocular; Eyepiece Type: Binocular; Arm Type: Adjustable; Focus Type: Adjustable; Image Direction: Upright; Eyepiece Magnification: 10x; Objective Lens Magnification: 100x, 5x, 3x, 1x, 10x, 20x
Item #: 12158648
Brand: Mitutoyo
Model #: 176-876-10
Product Specifications
| Microscope Type | Binocular |
| Eyepiece Type | Binocular |
| Arm Type | Adjustable |
| Focus Type | Adjustable |
| Image Direction | Upright |
| Eyepiece Magnification | 10x |
| Objective Lens Magnification | 100x; 5x; 3x; 1x; 10x; 20x |
| Working Distance (mm) | 72.50 (3X) |
| Minimum Magnification | 1x |
| Maximum Magnification | 200x |
| Field Number (Decimal Inch) | 1.5 |
| Focal Distance (mm) | 67.00 |
| Graduation (Decimal Inch) | 0.00010 |
| Housing Material | Frame (Metal) |
| Overall Height (Decimal Inch) | 37.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 32.0000 |
| Overall Length (Decimal Inch) | 32.0000 |
| Standards | N/A |
| Focusing | 107.00 mm |
| Objective Lens Aperature (Decimal Inch) | 0.0000 |
| UNSPSC Code | 41111700 |
