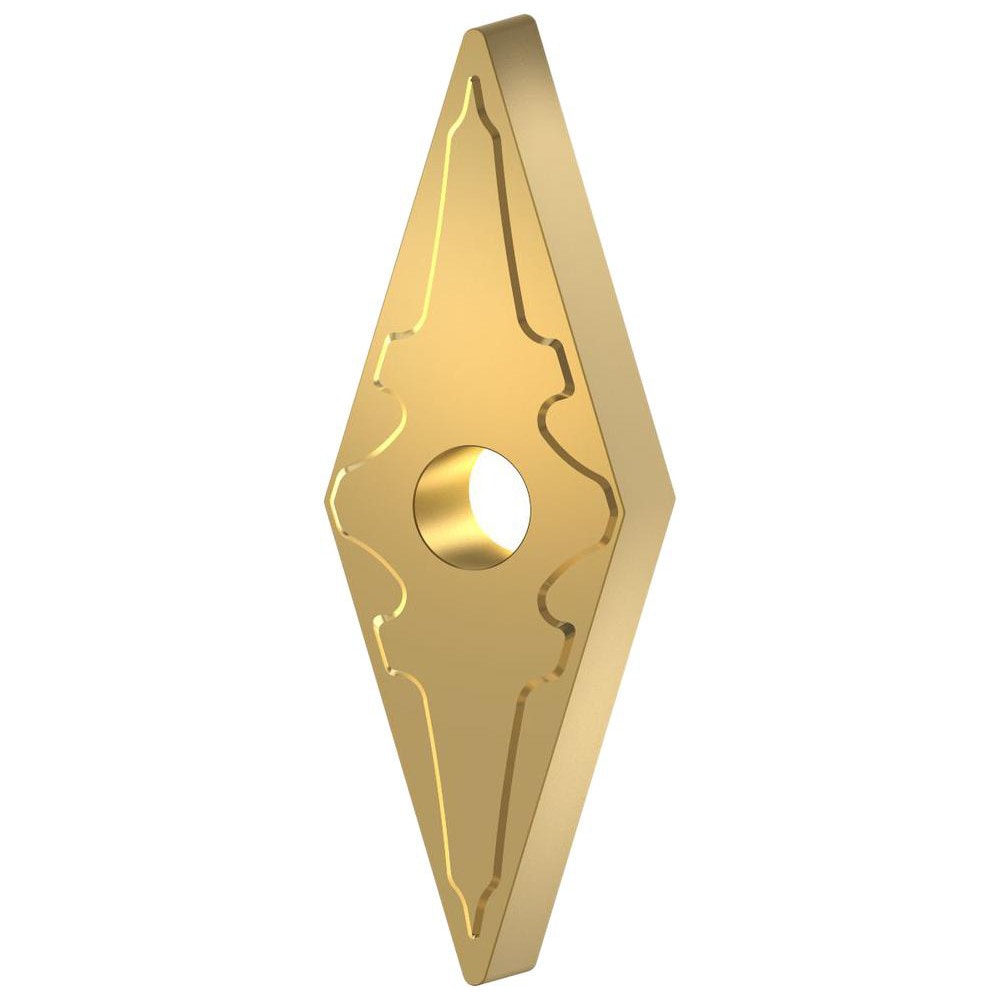

Turning Insert: VNMG332FPS KTP25S, Carbide
Item #: 95966149
Brand: Kennametal
Model #: 7161093
Product Specifications
| ANSI Insert Code | VNMG332 |
| ISO Insert Code | VNMG160408 |
| Relief Angle | 0.000 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35.00 |
| Manufacturer Grade | KTP25S |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Series | VNMG |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/16 |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6538 |
| Iso Code | VNMG160408FPS |
| Manufacturers Catalog Number | VNMG332FPS KTP25S |
| Chip Breaker | FPS |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
| Country of Origin | UNITED STATES |
