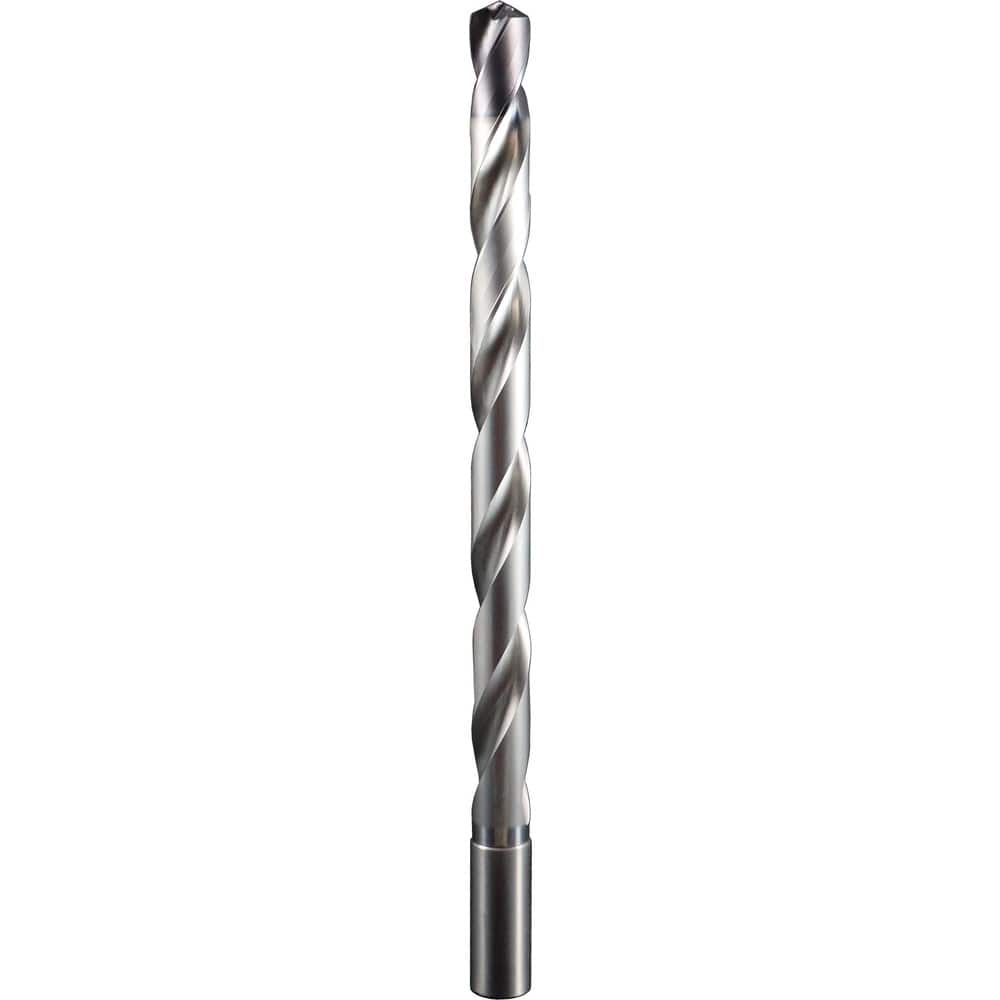

Extra Length Drill Bit: 0.4094″ Dia, 137 °, Solid Carbide TX Finish, 210.06″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series 142P
Item #: 13473434
Brand: SGS
Model #: 66783
Product Specifications
| Drill Bit Size (mm) | 10.40 |
| Flute Length (mm) | 162.05 |
| Tool Material | Solid Carbide |
| Coating/Finish | TX |
| Drill Point Angle | 137 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 142P |
| Point Type | Flat-Bottom |
| Cutting Direction | Right Hand |
| Tool Application | Drilling |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.4094 |
| Overall Length (Decimal Inch) | 210.0600 |
| Shank Diameter (Decimal Inch) | 12.0000 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (mm) | 162.05 |
