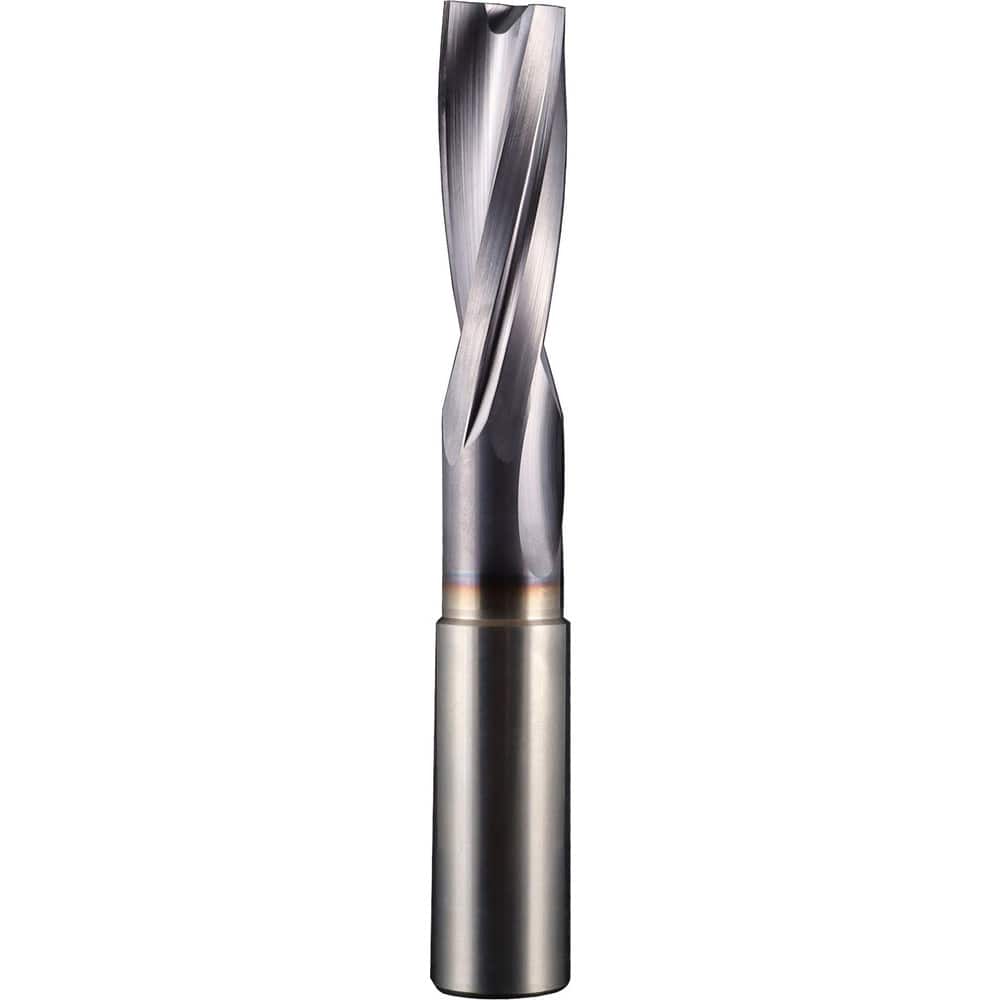

Screw Machine Length Drill Bit: 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 146U
Item #: 13418538
Brand: SGS
Model #: 67812
Product Specifications
| Drill Bit Size (mm) | 19.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Shank Diameter (mm) | 20.00 |
| Series | 146U |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Point Type | Flat Bottom |
| Maximum Drilling Depth (mm) | 85.50 |
| Shank Length (Decimal Inch) | 2.1500 |
| Shank Length (mm) | 54.61 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.008 to +0.029 |
| Flute Length (mm) | 85.50 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
