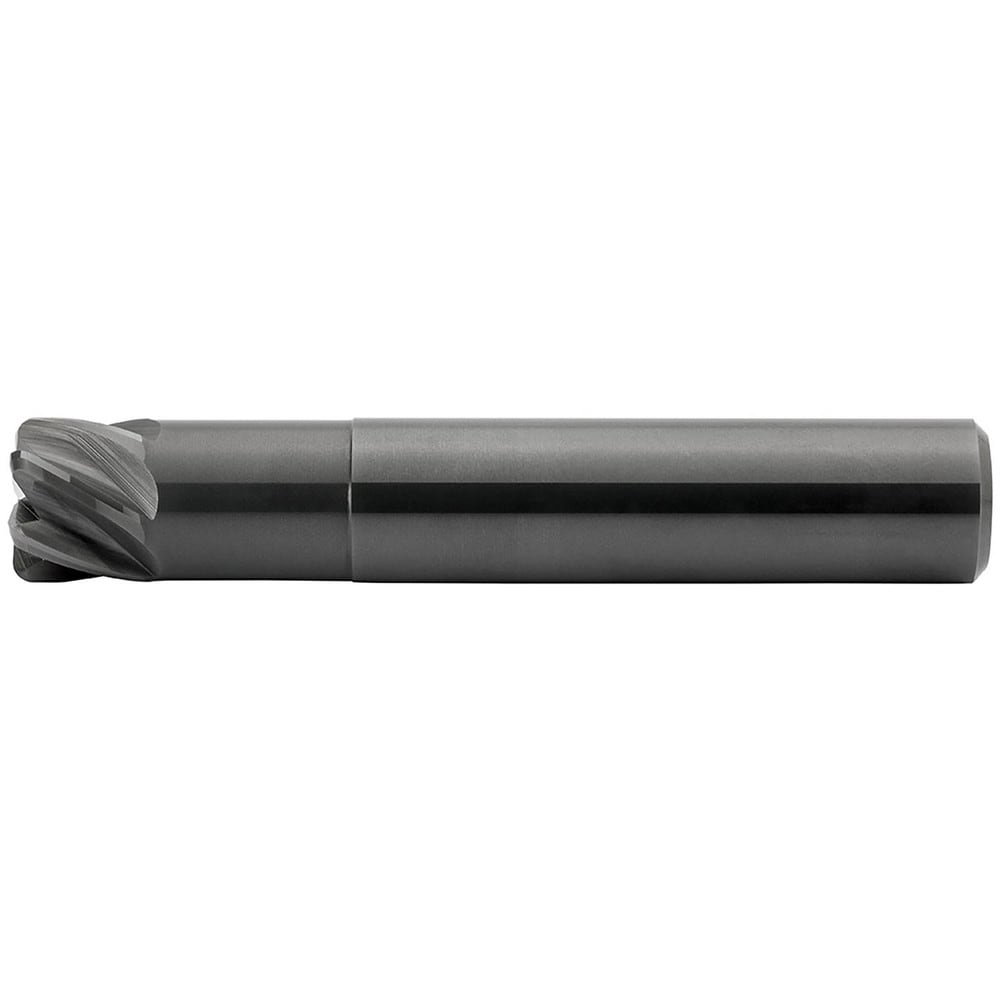

Corner Radius End Mill: 12 mm Dia, 9.00 mm LOC, 1.50 mm Radius, 6 Flute, Ceramic
Item #: 94611209
Brand: Mitsubishi
Model #: 10521045
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 6 |
| Length of Cut (mm) | 9.00 |
| Single Or Double End | Single |
| End Mill Material | Ceramic |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0591 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.50 |
| Overall Length (mm) | 70.00 |
| Coolant Through | No |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 12.00 |
| Neck Diameter (mm) | 11.70 |
| Neck Diameter (Decimal Inch) | 0.4606 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium; Titanium Alloy |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Material Application | Heat-Resistant Alloy; Titanium Alloy |
| Coating Classification | Uncoated |
| Proprietary Coating Designation | Uncoated |
| Country of Origin | Japan |
