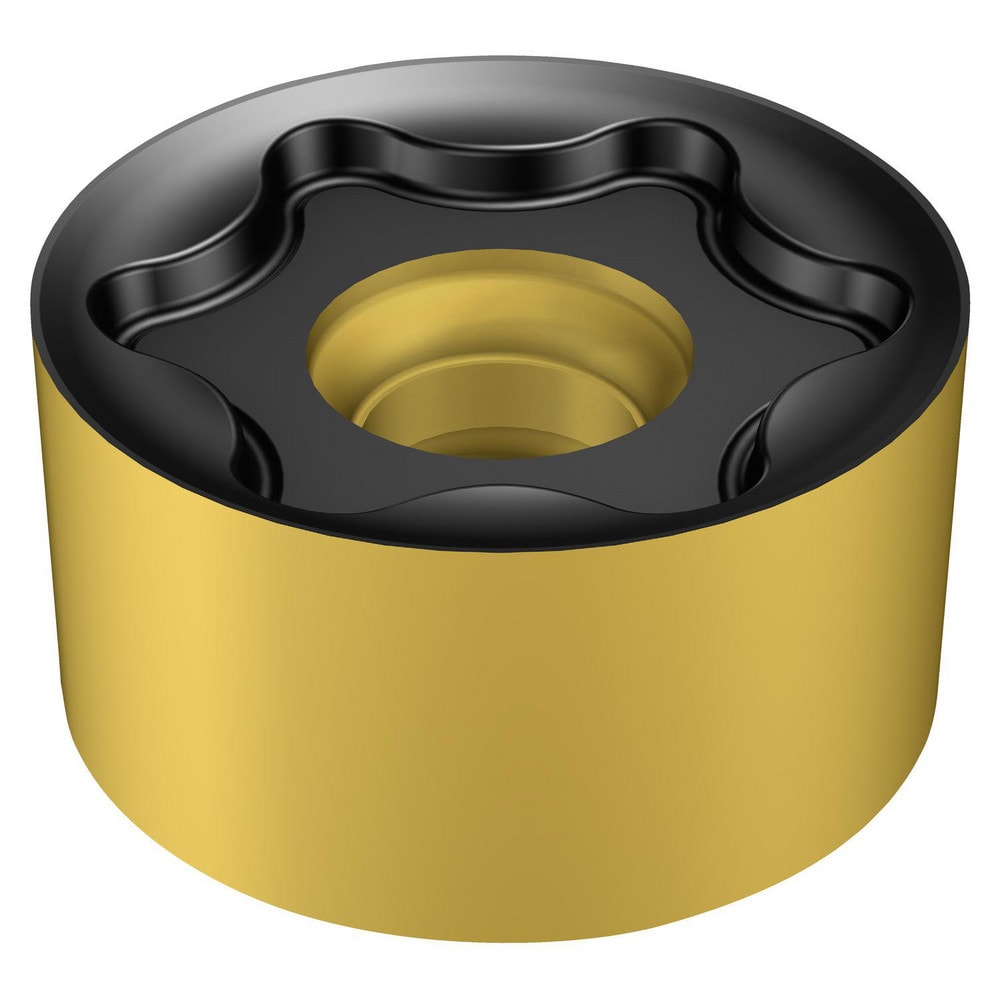

Milling Insert: MR80-1206E-L50 4330 4330, Carbide
Item #: 06566145
Brand: Sandvik Coromant
Model #: 8303356
Product Specifications
| Insert Style | MR80 |
| Insert Size | 1206 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | 4330 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
| Thickness (mm) | 6.0000 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Series | CoroMill MR80 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.7000 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | MR80-1206E-L50 4330 |
| Iso Code | MR80-1206E-L50 4330 |
| Manufacturers Catalog Number | MR80-1206E-L50 4330 |
| Chip Breaker | L50 |
| Cutting Direction | Neutral |
| UNSPSC Code | 23242105 |
| Insert Holding Method | Screw/Clamp |
| Single or Double Sided Insert | Double |
