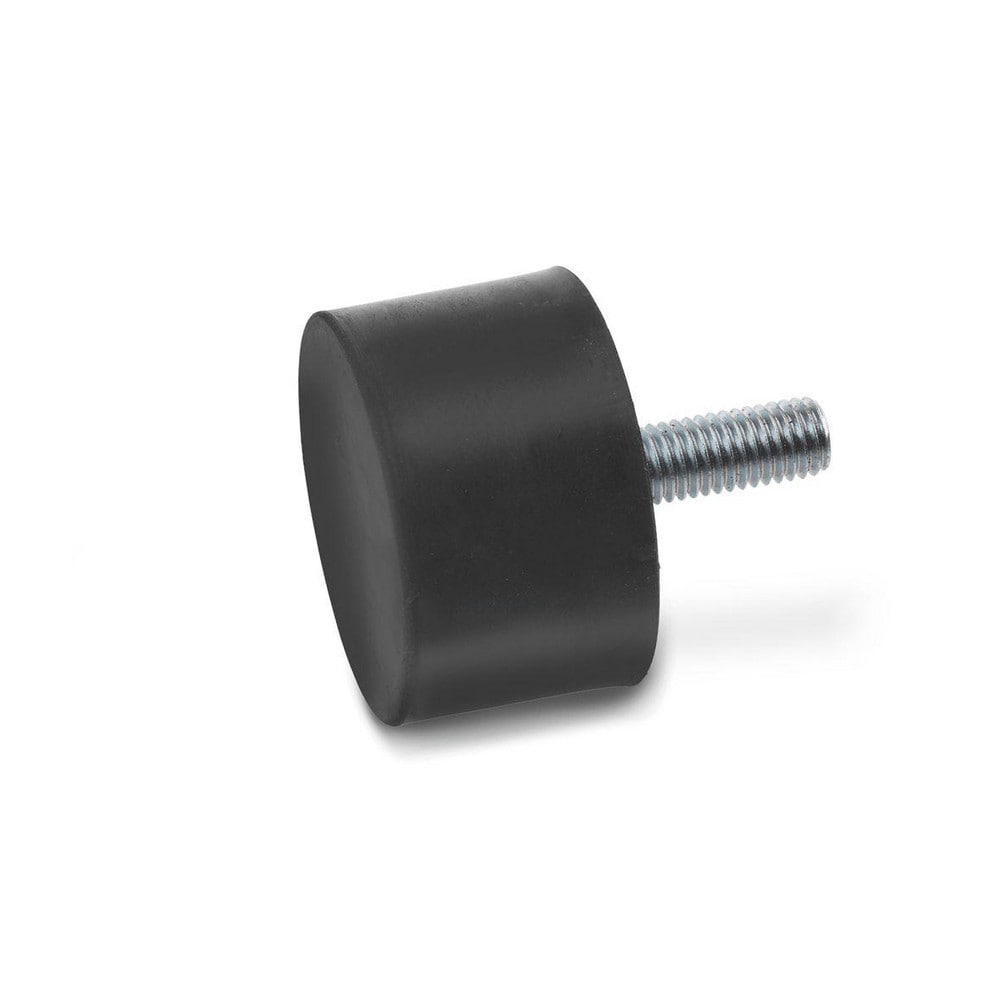

GN352-40-25-M8-S-40 RUBBER BUMPER
Item #: 07857592
Brand: J.W. Winco
Model #: 352-40-25-M8-S-40
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1170.00 |
| Top Diameter | 40.00 |
| Bottom Diameter | 40 |
| Thread Size | M8 |
| Overall Width | 40 in |
| Overall Diameter | 40 mm |
| Thread Length (Decimal Inch) | 0.9100 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 40A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 25 mm |
| UNSPSC Code | 23153130 |
