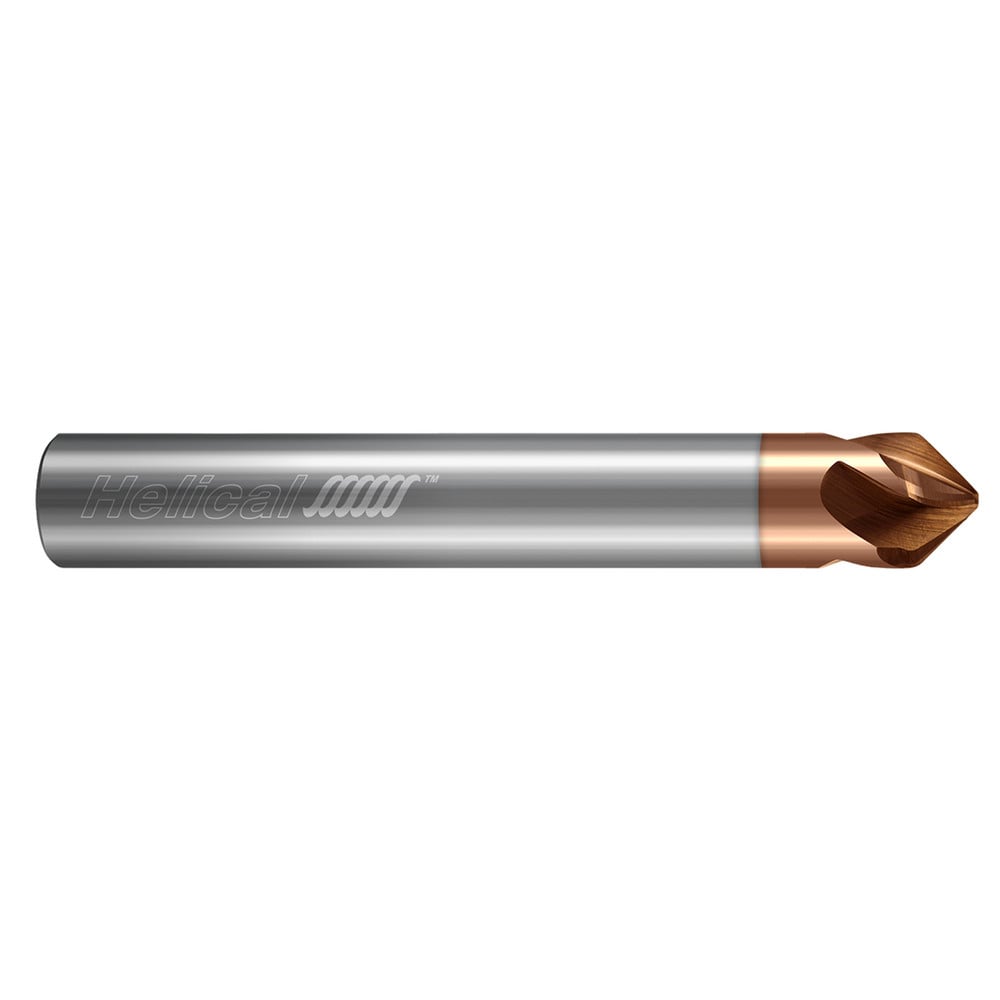

Barrel Cutter End Mills; End Type: Taper Form; Material: Solid Carbide; Taper Angle Per Side: 75.00
Item #: 91659250
Brand: Helical Solutions
Model #: 86353
Product Specifications
| End Type | Taper Form |
| Material | Solid Carbide |
| Taper Angle Per Side | 75.00 |
| Series/List | Stainless & High Temp - Multi-Axis Finishers - 4 Flute - Taper Form |
| Corner Radius (Decimal Inch) | 0.0391 |
| Finish Coating | Tplus |
| Major Radius (Decimal Inch) | 20.0000 |
| Length of Cut (Decimal Inch) | 0.1082 |
| Shank Diameter | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3 |
| Number Of Flutes | 4 |
| Overall Length (Decimal Inch) | 3.0000 |
| Small End Diameter (Decimal Inch) | 0.3125 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
