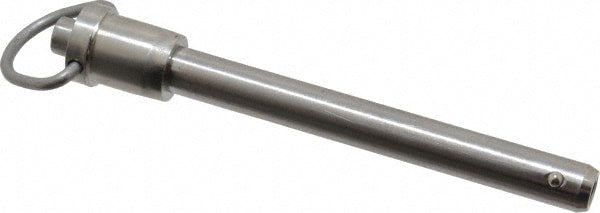

3/8" Diam, 3" Usable Length, Ring Handle, Push Button Quick Release Pin
Item #: 88413240
Brand: Jergens
Model #: 800257
Product Specifications
| Pin Type | Push-Button Quick-Release Pin |
| Handle Type | Ring Handle |
| Pin Diameter (Inch) | 3/8 |
| Usable Length (Inch) | 3 |
| Overall Length (Inch) | 5 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 440C |
| Ball Hardness | Rockwell C40 |
| Handle Material | Aluminum |
| Breaking Strength | 20700.0 |
| Pin Finish/Coating | Passivated |
| Spindle Hardness | RC 40 |
| Breaking Strength Measurement | Double Shear |
| Fastener Standard | MIL-C-5541; MIL-A-8625; QQ-P-416; AMS-QQ-P-35; MIL-H-6875 |
| System Of Measurement | Inch |
| UNSPSC Code | 31162400 |
| Country of Origin | UNITED STATES |
