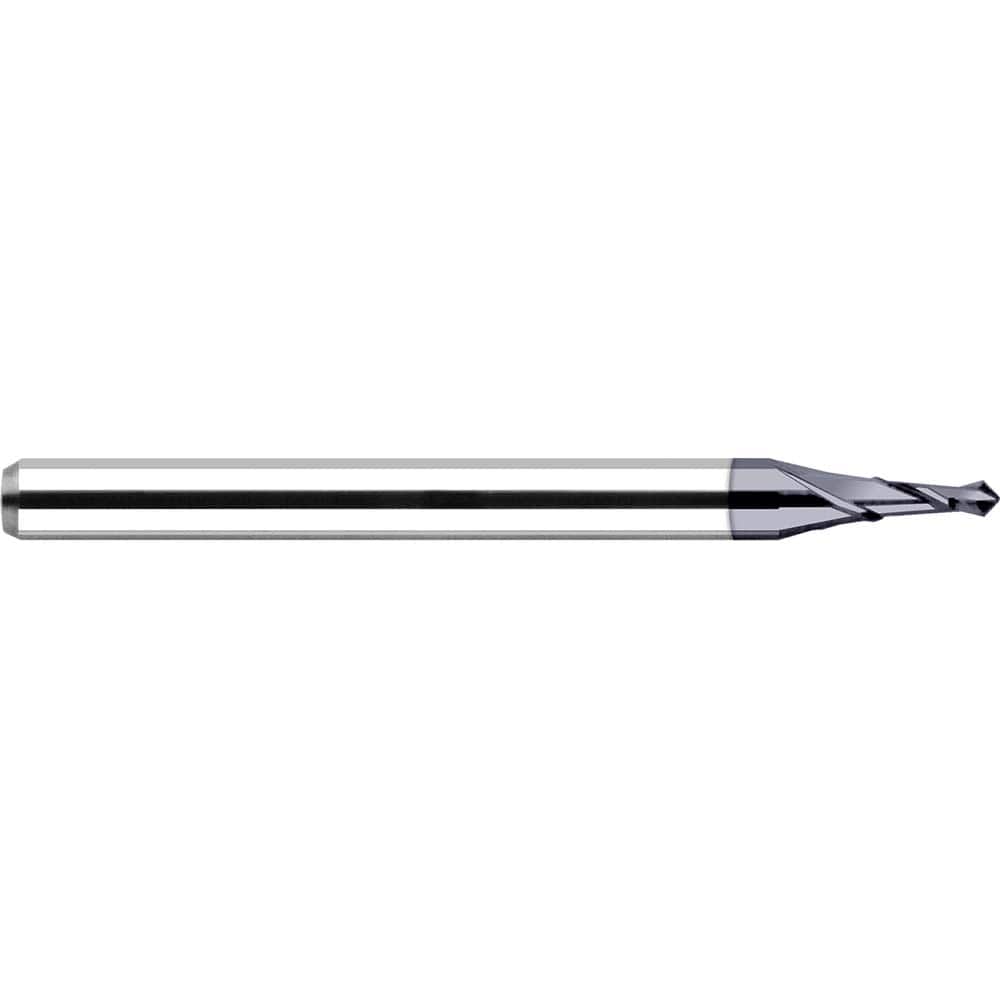

100° 1/8″ Diam 1-1/2″ OAL 2-Flute Solid Carbide Spotting Drill AlTiN Finish, 3/8″ Flute Length, 1/8″ Shank Diam
Item #: 12742540
Brand: Harvey Tool
Model #: 955908-C3
Product Specifications
| Drill Point Angle | 100 |
| Cutting Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 1-1/2 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Length (Inch) | 3/8 |
| Flute Length (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Point Type | Harvey Type II |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thickness | 0.0100 |
