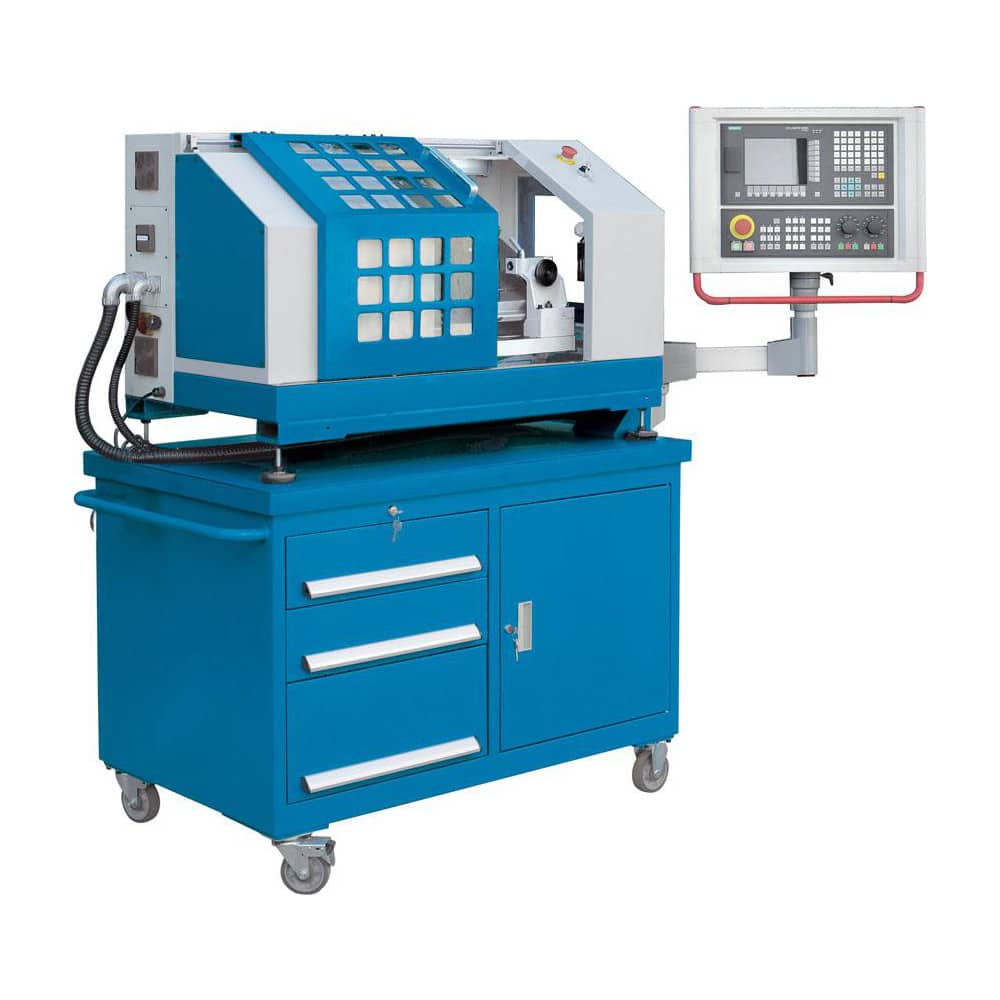

CNC Lathes; Precision: 0.00039 in; Swing (Inch): 8; Swing Over Cross Slide (Inch): 4; Distance Between Centers (Inch): 11; Headstock Taper Size: Morse Taper 3; Tailstock Taper Size: Morse Taper 1; Spindle Bore Diameter (Inch): 1; Spindle Nose Designation:
Item #: 12582383
Brand: Knuth
Model #: 181625
Product Specifications
| Precision | 0.00039 in |
| Swing (Inch) | 8 |
| Swing Over Cross Slide (Inch) | 4 |
| Distance Between Centers (Inch) | 11 |
| Headstock Taper Size | Morse Taper 3 |
| Tailstock Taper Size | Morse Taper 1 |
| Spindle Bore Diameter (Inch) | 1 |
| Spindle Nose Designation | Morse Taper |
| Number Of Spindle Speeds | Variable Speed |
| Controller | Siemens 808D |
| Cross Slide Travel Length (Decimal Inch) | 3.40 |
| Overall Length (Inch) | 63 |
| Overall Height (Inch) | 65 |
| Overall Depth (Inch) | 48 |
| Maximum Rpm | 3000 |
| Minimum RPM | 100.00 |
| Horsepower (Hp) | 1.3 |
| Phase | 3 |
| Voltage | 380 |
