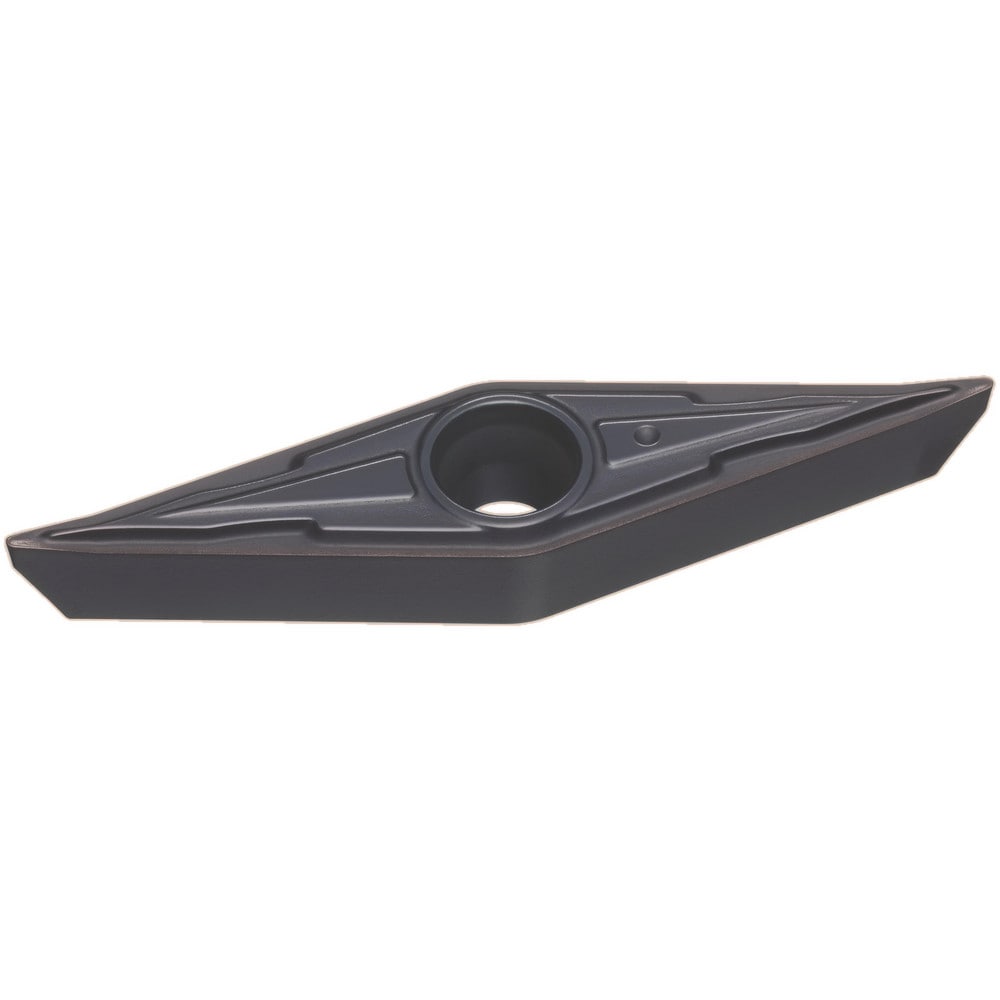

Turning Insert: XCMT221SVX VP15TF, Carbide
Item #: 07117161
Brand: Mitsubishi
Model #: 519435
Product Specifications
| ANSI Insert Code | XCMT221 |
| ISO Insert Code | XCMT |
| Relief Angle | 7 |
| Insert Style | XCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 25 |
| Manufacturer Grade | VP15TF |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Non-ISO Specialty Shapes |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | X |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | SVX |
| ANSI Size Code | 221 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
