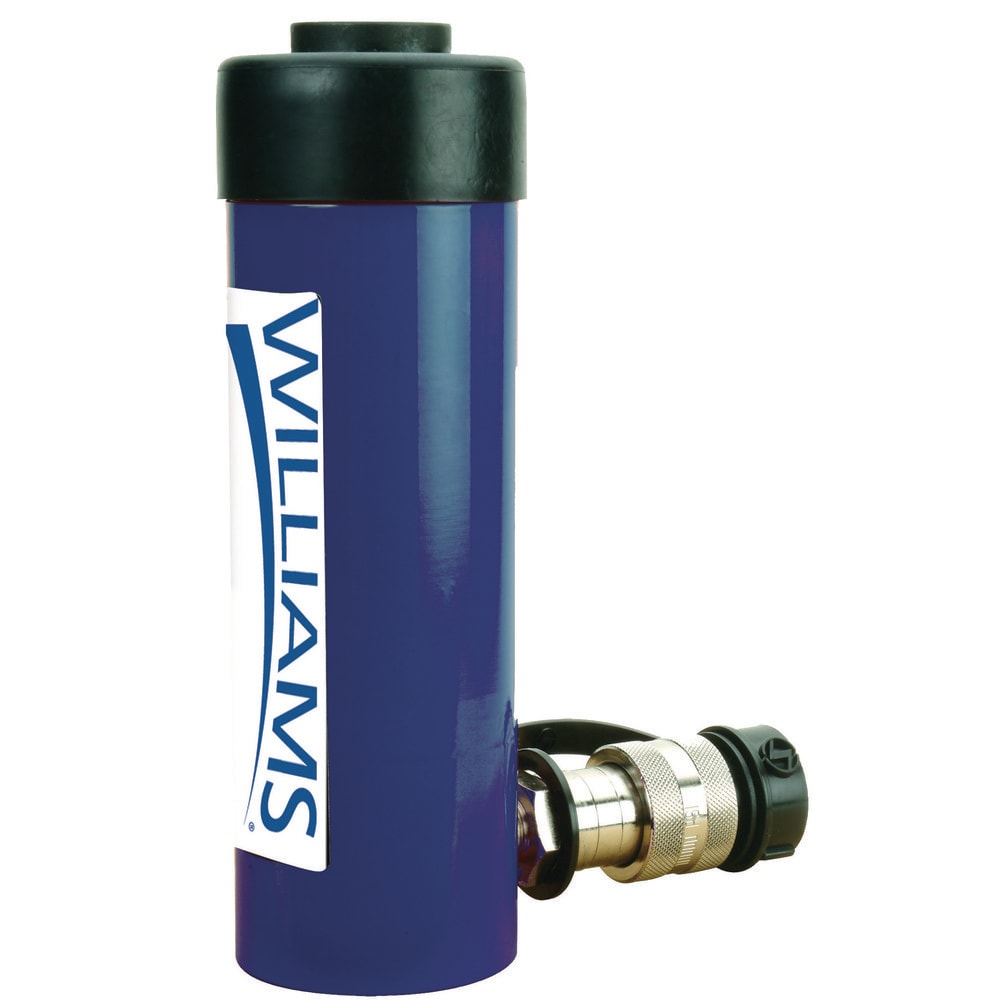

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 15 TON; Stroke Length: 12.01; Piston Stroke (Decimal Inch): 12.01; Oil Capacity: 37.71; Cylinder Effective Area: 3.14; Lowered Height: 16.65
Item #: 54382940
Brand: Williams
Model #: 6C15T12
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 15 TON |
| Stroke Length | 12.01 |
| Piston Stroke (Decimal Inch) | 12.01 |
| Oil Capacity | 37.71 |
| Cylinder Effective Area | 3.14 |
| Lowered Height | 16.65 |
| Retracted Length | 16.65 |
| Extended Length | 28.66 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 2.75 |
| Rod Diameter | 2.00 mm |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .29 |
| Saddle Diameter | 1.56 |
| Y Center Hole Diameter | 2.00 |
| Maximum Height (Inch) | 28.66 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
