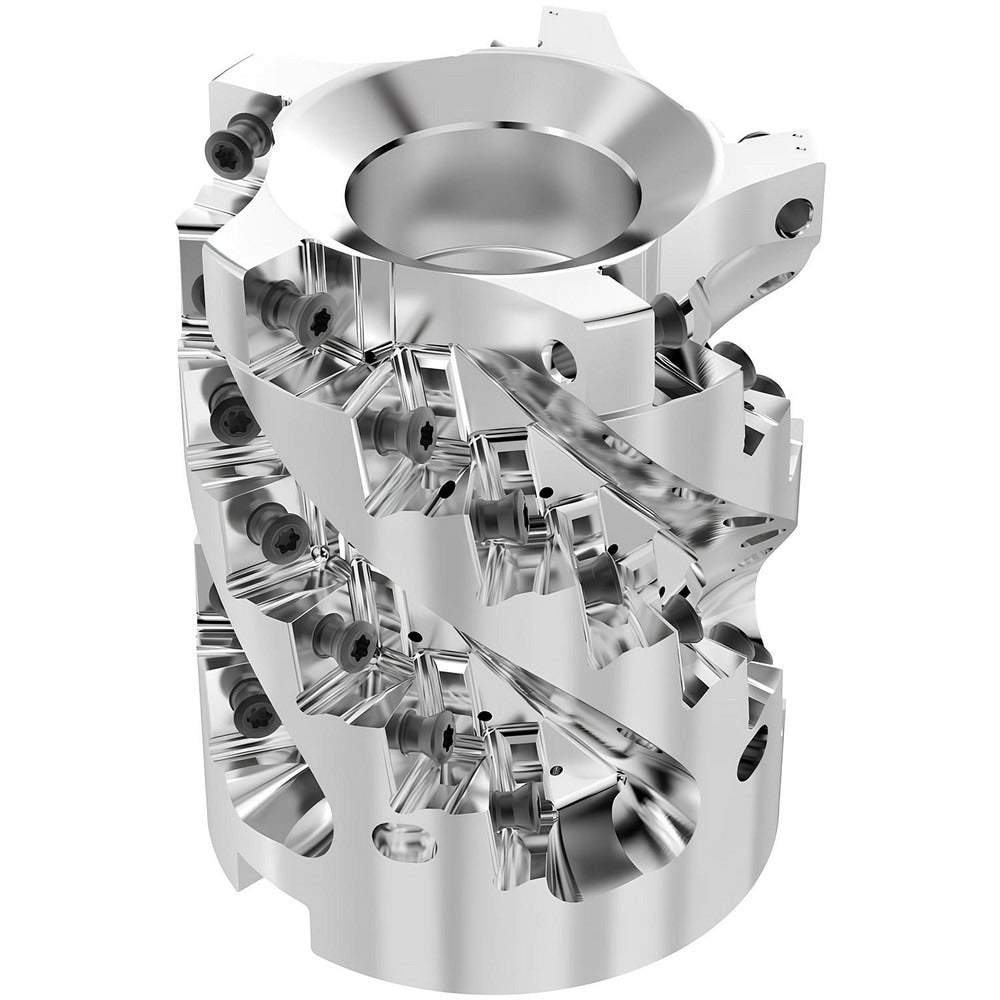

Brand: Seco / Part #: 10127495
Item #: 40068215
Brand: Seco
Model #: 10127495
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 79.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Compatible Insert Size Code | AC.T1506; SN.U1306 |
| Maximum Ramping Angle | 0.0 |
| Cutter Style | R220.81 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | -9.500 |
| Series | R220.81 |
| Overall Height (Mm - 5 Decimals) | 100.00000 |
| Keyway Width (mm) | 14.40 |
| Hub Diameter (mm) | 75.000 |
| Pitch Type | Normal |
| Maximum RPM | 6500.000 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Keyway Depth (mm) | 8.00 |
| Number of Adjustable Pockets | 0 |
| ISO Number | R220.81-0080-079-SNAC15.5KA |
| Complete Insert Compatibility | AC.T1506; SN.U1306 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.81-0080-079-SNAC15.5KA |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 35 |
| Number Of Flutes | 5 |
