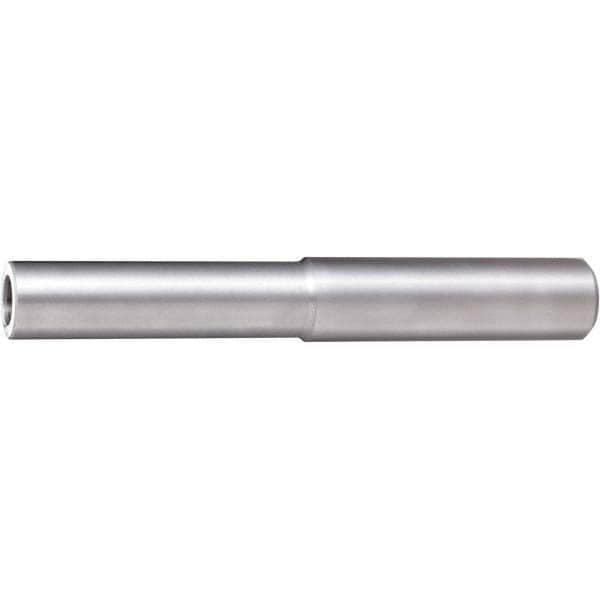

Replaceable Tip Milling Shank: Series 52600, 4" Projection, 1" Straight Shank
Item #: 32277998
Brand: OSG
Model #: 52600016
Product Specifications
| Projection (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Neck Diameter (Decimal Inch) | 0.9050 |
| Neck Thread Size | M12 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9050 |
| Toolholder Style | PXM SF |
| Tool Material | Solid Carbide |
| Series | 52600 |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 4.0000 |
| Shank Shape | Round |
| Coolant Through | No |
| UNSPSC Code | 23291600 |
