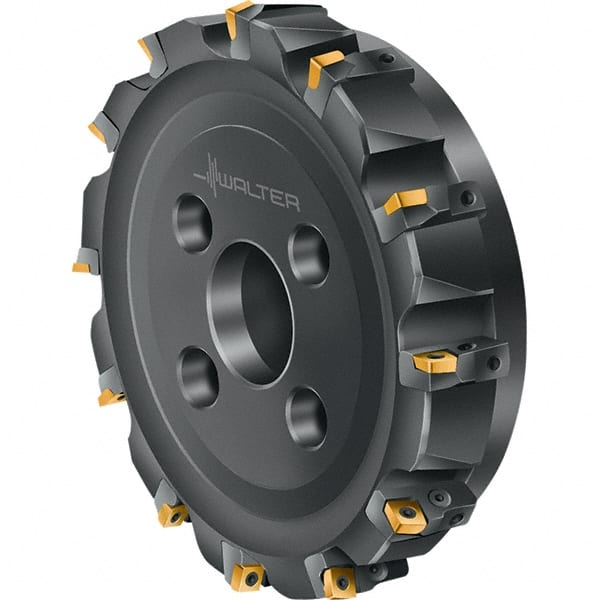

250mm Cut Diam, 60mm Arbor Hole Diam, Indexable Square-Shoulder Face Mill 45° Lead Angle
Item #: 11739646
Brand: Walter
Model #: 7469947
Product Specifications
| Minimum Cutting Diameter (mm) | 250.00 |
| Maximum Cutting Diameter (mm) | 250.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Inch) | 60 |
| Arbor Hole Diameter (Decimal Inch) | 60.0000 |
| Compatible Insert Size Code | XN U0705 |
| Cutter Style | F2010 |
| Lead Angle | 45 |
| Series | F2010 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H; O |
| Standards | ISO |
| Coolant Through | No |
| Number Of Cutter Inserts | 16 |
| Number Of Flutes | 16 |
