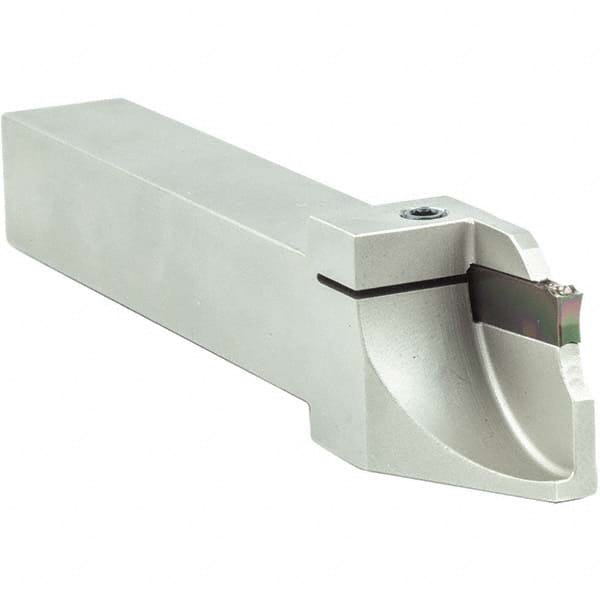

0.394″ Max Depth, 0.059 to 0.787″ Width, External Left Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, 12mm Shank Height, Uses SA 24-15\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving
Item #: 11430444
Brand: Arno
Model #: 101908
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (mm) | 10.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.7870 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Minimum Groove Width (mm) | 1.50 |
| Toolholder Style | HSA Monoblock |
| Insert Holding Method | Screw |
| Insert Compatibility | SA 24-15? |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4720 |
| Series | Grooving; SA Parting |
| Overall Length (Decimal Inch) | 4.3310 |
| Head Length (Decimal Inch) | 0.3940 |
| Manufacturers Catalog Number | HSA 1212U-L-SA24015-20 |
| Coolant Through | No |
