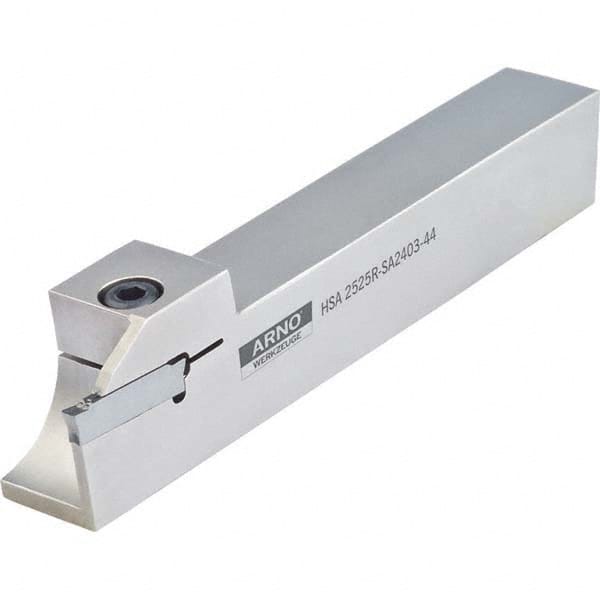

0.866″ Max Depth, 0.118 to 1.732″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6.693″ OAL, 32mm Shank Height, Uses SA 24-30\x85 Inserts, HSA Monoblock Toolholder, Series SA Parting / Grooving
Item #: 11428497
Brand: Arno
Model #: 87732
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Depth of Cut (mm) | 22.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 1.7320 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | HSA Monoblock |
| Insert Holding Method | Screw |
| Insert Compatibility | SA 24-30? |
| Shank Height (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2590 |
| Series | Grooving; SA Parting |
| Overall Length (Decimal Inch) | 6.6930 |
| Head Length (Decimal Inch) | 0.8660 |
| Manufacturers Catalog Number | HSA 3225R-SA2403-44 |
| Coolant Through | No |
