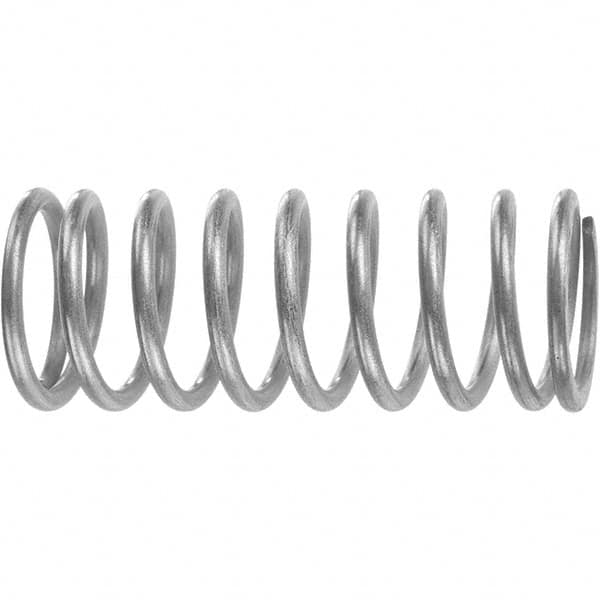

Compression Spring: 1.763″ OD, 6″ Free Length 0.148″ Wire Dia, 67.38 lb Max Load, 18.146 lb/in Spring Rate, Music Wire
Item #: 11037942
Brand: Associated Spring Raymond
Model #: C1763-148-6000M
Product Specifications
| Type | Compression |
| Outside Diameter (Decimal Inch) | 1.7630 |
| Free Length (Decimal Inch) | 6.0 in; 6.0 mm |
| Free Length (mm) | 6.0 in; 6.0 mm |
| Free Length | 6.0 in; 6.0 mm |
| Spring Rate Pounds per Inch | 18.1460 |
| Spring Rate Newtons | 18.1460 |
| Maximum Work Load (N) | 67.38 lb |
| Maximum Work Load | 67.3800; 67.38 lb |
| Solid Height | 1.713 |
| Spring Rate | 18.1460 |
| Material | Music Wire |
| Maximum Load | 67.38 lb |
| Wire Size (Decimal Inch) | 0.1480 |
