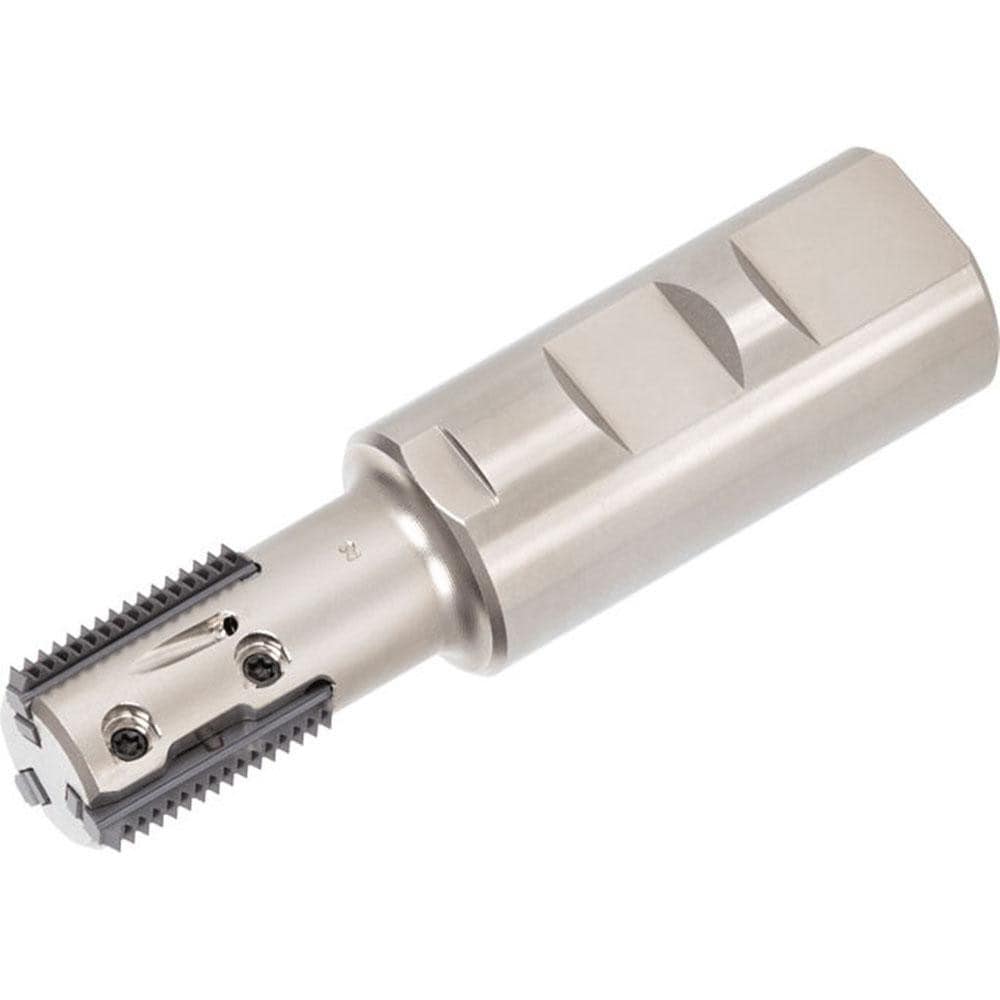

Indexable Thread Mills; Cutting Diameter (Decimal Inch): 0.8661; Maximum Hole Depth (Decimal Inch): 4.4880; Maximum Cutting Length (Decimal Inch): 0.9840; Compatible Insert Style: TL; Insert Style: TL
Item #: 06218937
Brand: Tungaloy
Model #: 6784824
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8661 |
| Maximum Hole Depth (Decimal Inch) | 4.4880 |
| Maximum Cutting Length (Decimal Inch) | 0.9840 |
| Compatible Insert Style | TL |
| Insert Style | TL |
| Compatible Insert Size Code | 25D.. |
| Toolholder Style | ETTL |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Holding Method | Screw |
| Number of Threading Inserts | 3 |
| Overall Length (Decimal Inch) | 4.4880 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Cutting Direction | Neutral |
| Toolholder Material | Steel |
| Thread Type | Internal; External |
| Series | ETTL |
| Flute Type | Straight |
| Number Of Flutes | 3 |
| Insert Size | 25D.. |
| Coolant Through | Yes |
| UNSPSC Code | 23291800 |
