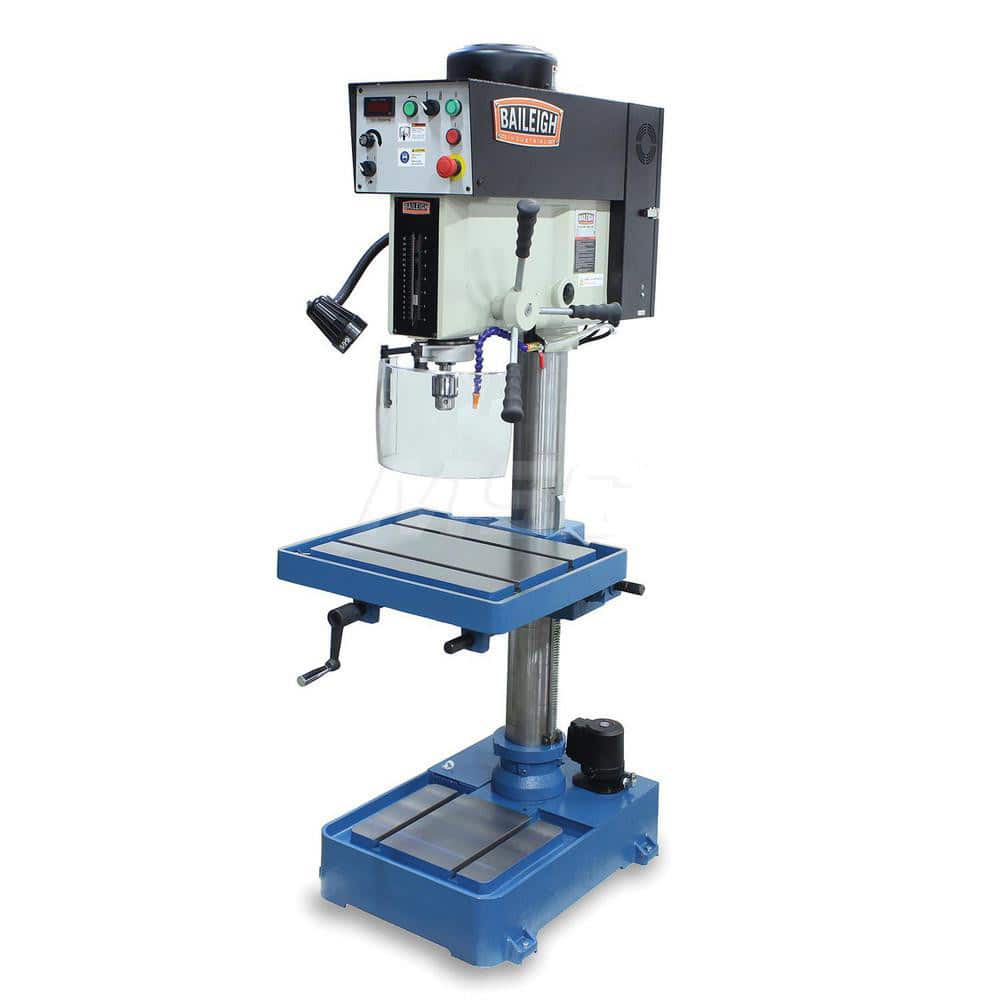

Floor Drill Press: 20.8″ Swing, 2 hp, 110V, 1 Phase 5.9″ Spindle Travel, 22″ Table Length, 18.75″ Table Width
Item #: 10755031
Brand: Baileigh
Model #: 1227902
Product Specifications
| Stand Type | Floor |
| Swing Distance (Decimal Inch) | 20.8000 |
| Machine Type | Drill Press |
| Spindle Speed Control | Variable Speed |
| Phase | 1 |
| Spindle Taper Size | 3MT |
| Maximum Spindle Speed (RPM) | 2000 |
| Spindle to Table Distance (Inch) | 33-1/2 |
| Spindle Travel Length (Decimal Inch) | 5.9000 |
| Column Diameter (Decimal Inch) | 4.5200 |
| Drilling Capacity in Steel (Inch) | 1-1/16 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/16 |
| Table Slot Size (Decimal Inch) | 0.6250 |
| Table Length (Decimal Inch) | 22.0000 |
| Voltage | 110 |
| Horsepower | 2 |
| Base Length (Inch) | 27 |
| Base Width (Inch) | 19 |
| Overall Length (Decimal Inch) | 35.4000 |
