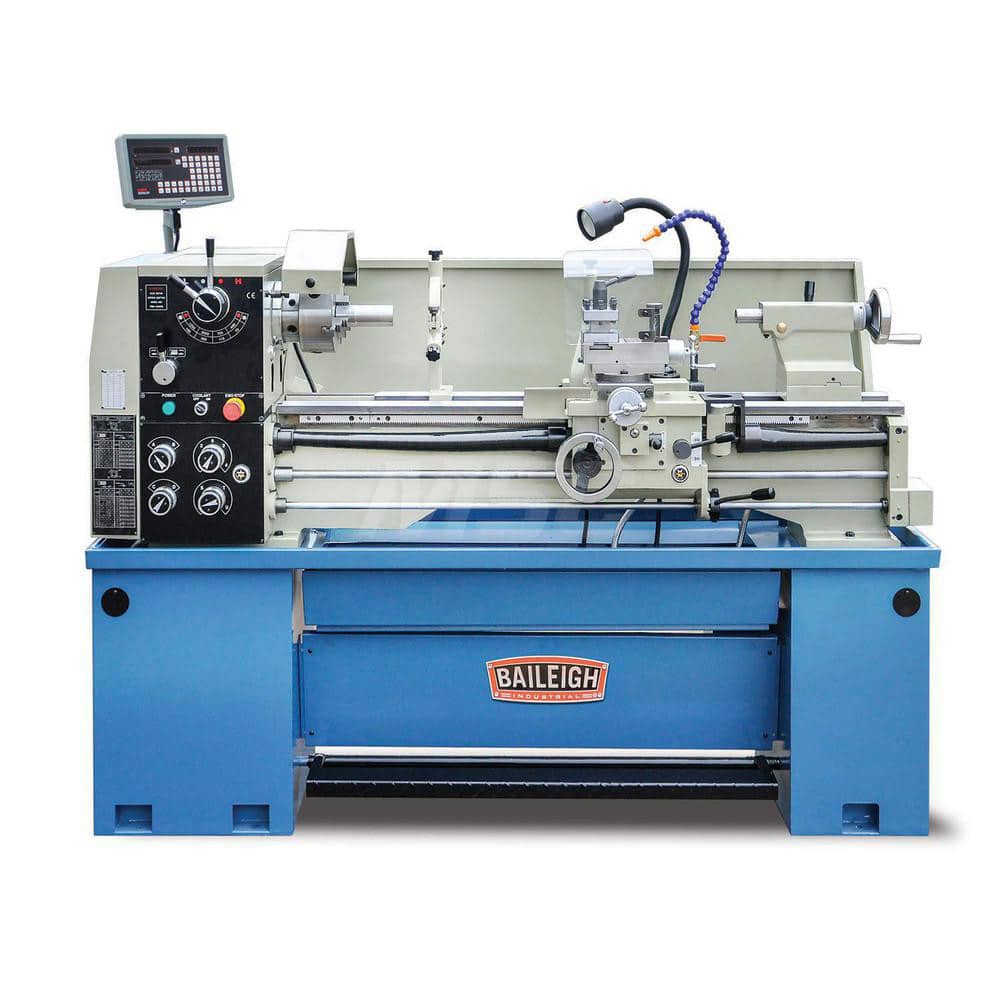

Toolroom Lathe: 14″ Swing, 40″, Variable 1-1/2″ Spindle Bore Dia, D1-4, 90 to 1,800 RPM, 1 Phase, 220V, 2 hp
Item #: 10754372
Brand: Baileigh
Model #: 1016623
Product Specifications
| Horsepower | 2.00 |
| Phase | 1 |
| Spindle Speed Control | Variable |
| Bed Width (Inch) | 7.0860 |
| Distance Between Centers (Inch) | 40 |
| Swing (Inch) | 14 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Minimum Spindle Speed | 90 |
| Spindle Nose Designation | D1-4 |
| Voltage | 220 |
| Maximum Spindle Speed | 1800 |
| Number of Inch Threads | 44 |
| Number of Metric Threads | 22 |
| Minimum Threads Per Inch | 4 |
| Number of Spindle Speeds | 8 |
| Maximum Threads Per Inch | 112 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0012 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0294 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000300 |
| Swing Over Cross Slide (Decimal Inch) | 8.6000 |
| Swing Over Gap (Decimal Inch) | 19.9000 |
| Machine Type | Toolroom Lathe |
