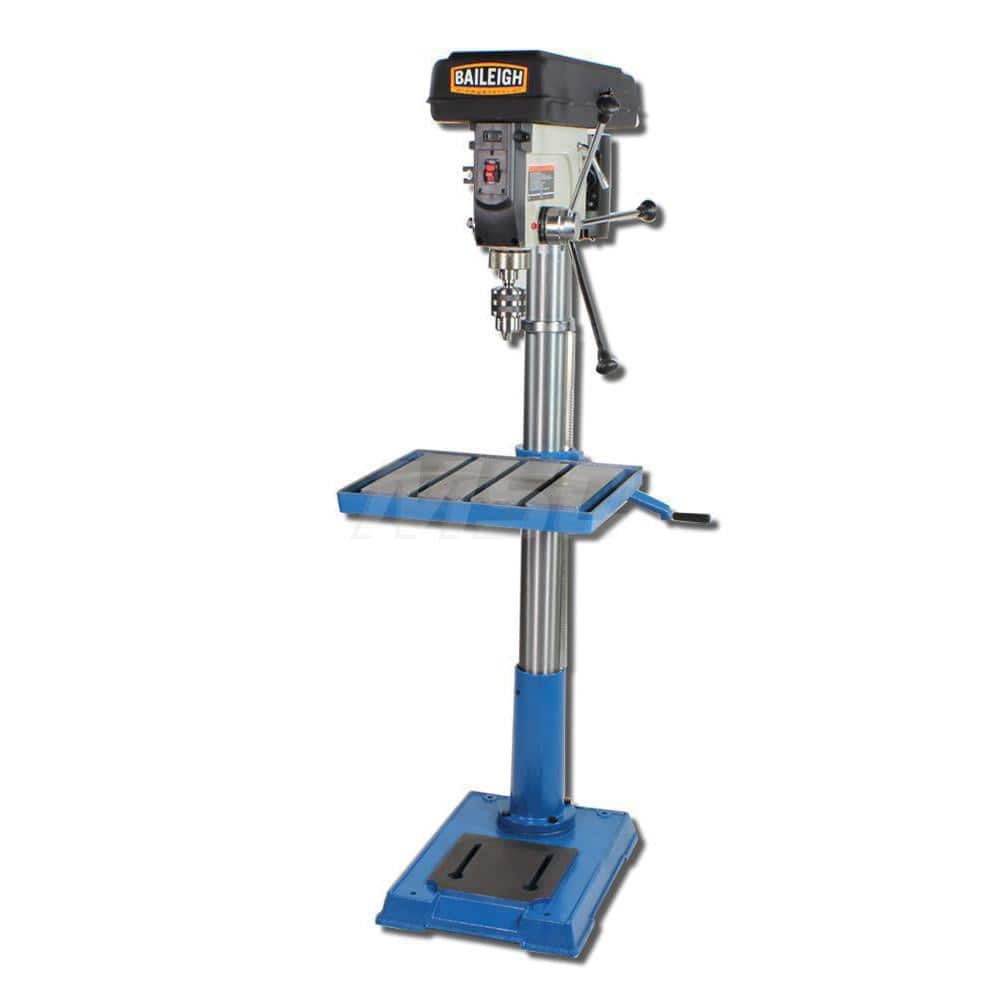

Floor Drill Press: 20″ Swing, 2 hp, 220V, 1 Phase 12 Speed, 4-3/4″ Spindle Travel
Item #: 10754117
Brand: Baileigh
Model #: 1015771
Product Specifications
| Stand Type | Floor |
| Swing Distance (Decimal Inch) | 20.0000 |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 20 |
| Spindle Speed Control | Variable |
| Phase | 1 |
| Spindle Taper Size | 4MT |
| Maximum Spindle Speed (RPM) | 3200 |
| Number of Spindle Speeds | 12 |
| Spindle to Table Distance (Inch) | 26 |
| Spindle to Table Distance (Decimal Inch) | 26.0000 |
| Spindle Travel Length (Inch) | 4-3/4 |
| Drilling Capacity in Steel (Inch) | 1-1/4 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/4 |
| Table Slot Size (Decimal Inch) | 0.6250 |
| Table Load Capacity (Lb.) | 390.00 |
| Table Length (Decimal Inch) | 16.5000 |
| Voltage | 220 |
| Horsepower | 2 |
| Overall Height (Decimal Inch) | 66.70 |
| Overall Length (Decimal Inch) | 35.4000 |
| Overall Depth (Inch) | 25.6000 |
