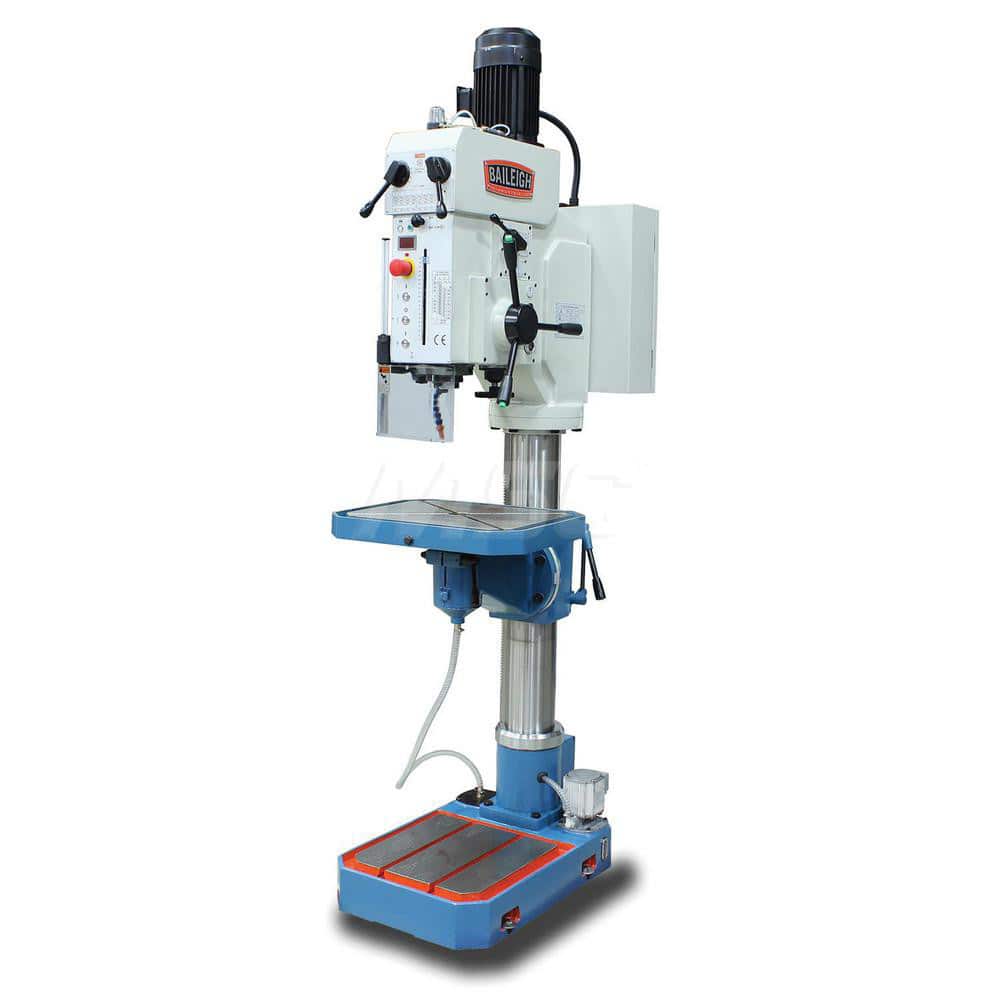

Floor Drill Press: 26-3/4″ Swing, 2 hp, 220V, 3 Phase 12 Speed, 7-3/4″ Spindle Travel
Item #: 10753861
Brand: Baileigh
Model #: 1020697
Product Specifications
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 26-3/4 |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Spindle Taper Size | 4MT |
| Maximum Spindle Speed (RPM) | 2425 |
| Number of Spindle Speeds | 12 |
| Spindle to Table Distance (Inch) | 24 |
| Spindle to Table Distance (Decimal Inch) | 24.0000 |
| Spindle Travel Length (Inch) | 7-3/4 |
| Column Diameter (Inch) | 5-1/2 |
| Table Slot Size (Decimal Inch) | 0.7000 |
| Table Length (Decimal Inch) | 17.2500 |
| Voltage | 220 |
| Horsepower | 2 |
| Base Length (Inch) | 33 |
| Base Width (Inch) | 25 |
