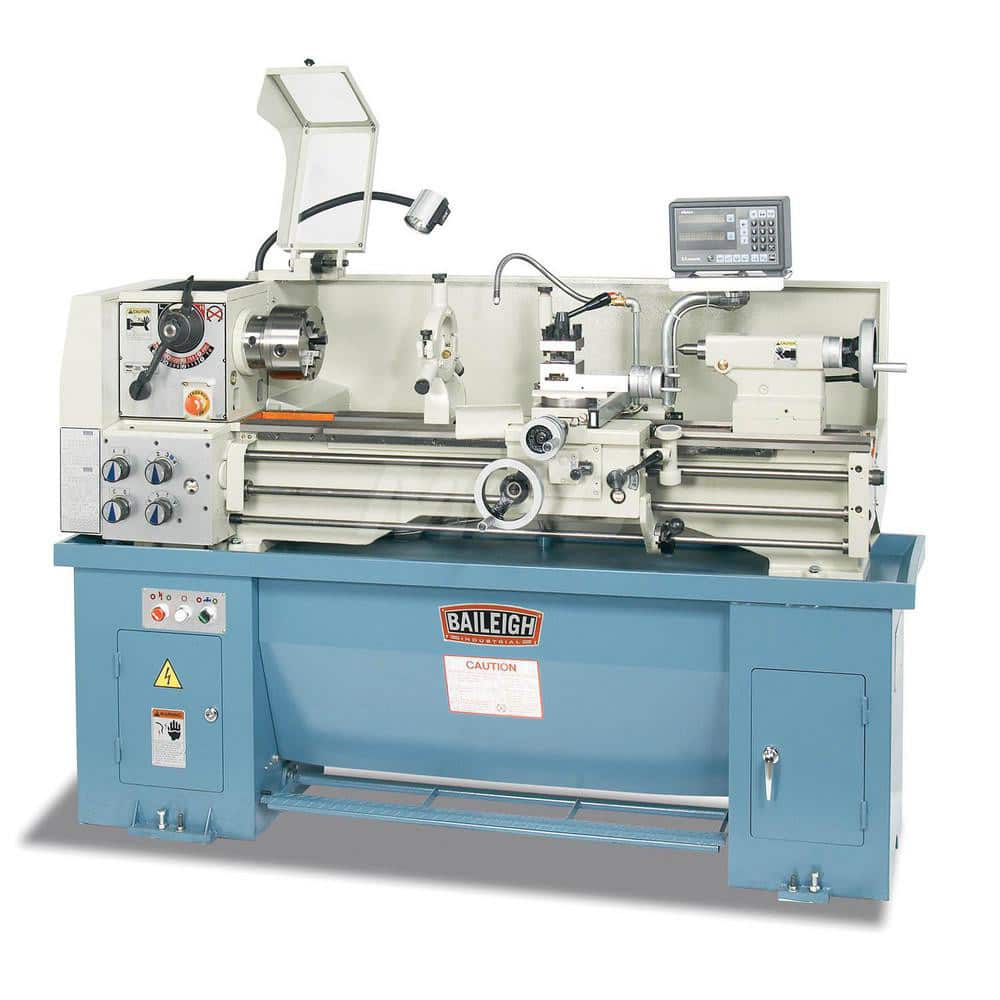

Toolroom Lathe: 13″ Swing, 40″, Variable 1-1/2″ Spindle Bore Dia, 5MT, 70 to 2,000 RPM, 1 Phase, 220V, 2 hp
Item #: 10753812
Brand: Baileigh
Model #: 1006057
Product Specifications
| Horsepower | 2.00 |
| Phase | 1 |
| Spindle Speed Control | Variable |
| Bed Width (Inch) | 7-3/8 |
| Distance Between Centers (Inch) | 40 |
| Gap Length (Decimal Inch) | 4.5000 |
| Cross Slide Travel (Decimal Inch) | 6.2900 |
| Swing (Inch) | 13 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Minimum Spindle Speed | 70 |
| Spindle Nose Designation | 5MT |
| Voltage | 220 |
| Maximum Spindle Speed | 2000 |
| Number of Inch Threads | 31 |
| Number of Metric Threads | 26 |
| Minimum Threads Per Inch | 4 |
| Number of Spindle Speeds | 8 |
| Maximum Threads Per Inch | 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0020 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.5480 |
| Swing Over Cross Slide (Inch) | 7-3/4 |
| Swing Over Gap (Inch) | 18-3/4 |
| Machine Type | Precision Lathe |
