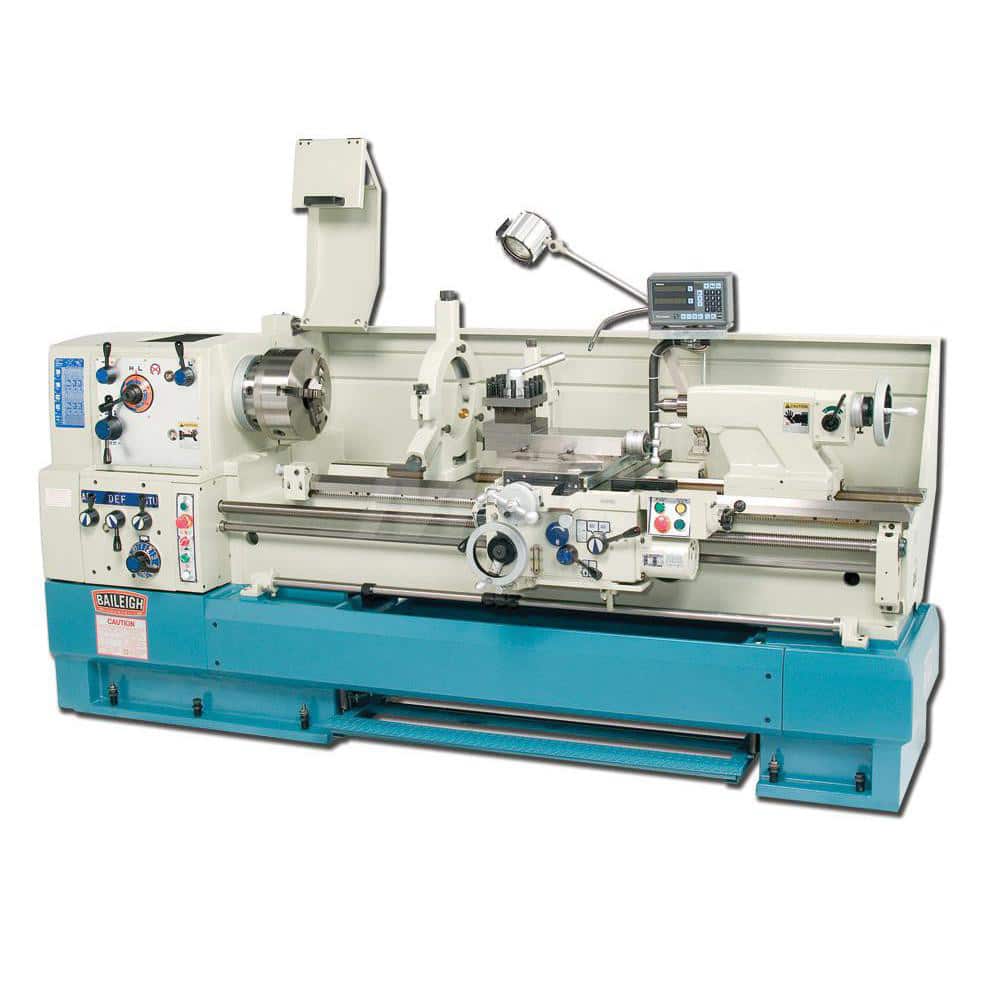

Toolroom Lathe: 20″ Swing, 60-1/4″, Variable 3-1/8″ Spindle Bore Dia, 7MT, 20 to 1,550 RPM, 3 Phase, 220V, 15 hp
Item #: 10753671
Brand: Baileigh
Model #: 1006164
Product Specifications
| Horsepower | 15.00 |
| Phase | 3 |
| Spindle Speed Control | Variable |
| Bed Width (Inch) | 16-1/8 |
| Distance Between Centers (Inch) | 60-1/4 |
| Gap Length (Decimal Inch) | 7.0625 |
| Cross Slide Travel (Inch) | 12-1/2 |
| Swing (Inch) | 20 |
| Spindle Bore Diameter (Inch) | 3-1/8 |
| Minimum Spindle Speed | 20 |
| Spindle Nose Designation | 7MT |
| Voltage | 220 |
| Maximum Spindle Speed | 1550 |
| Number of Inch Threads | 60 |
| Number of Metric Threads | 60 |
| Minimum Threads Per Inch | 2 |
| Number of Spindle Speeds | 12 |
| Maximum Threads Per Inch | 112 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0014 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0387 |
| Minimum Cross Feed Rate Per Revolution (mm) | 0.0185 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000700 |
| Swing Over Cross Slide (Inch) | 13 |
| Swing Over Gap (Inch) | 26-3/8 |
| Machine Type | Precision Lathe |
