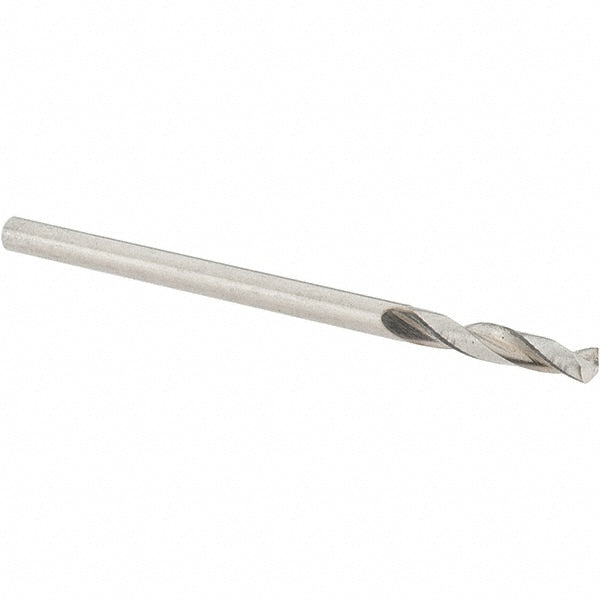

Screw Machine Length Drill Bit: 5/64" Dia, 130 deg Point, Cobalt
Item #: 97672372
Brand: Guhring
Model #: 9003290019800
Product Specifications
| Drill Bit Size (Inch) | 5/64 |
| Drill Bit Size (Decimal Inch) | 0.0781 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Point Type | Cone Relief |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0781 |
| Overall Length (mm) | 38.00 |
| Overall Length (Decimal Inch) | 1.4961 |
| Shank Diameter (mm) | 1.98 |
| Series | 329 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | Bright/Uncoated |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.4724 |
| Maximum Drilling Depth (mm) | 12.00 |
| Shank Length (Decimal Inch) | 1.0236 |
| Shank Length (mm) | 26.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Standards | DIN 1897 |
| Flute Length (Decimal Inch) | 0.4724 |
| Flute Length (mm) | 12.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M35 |
| UNSPSC Code | 23241635 |
| Country of Origin | Germany |
