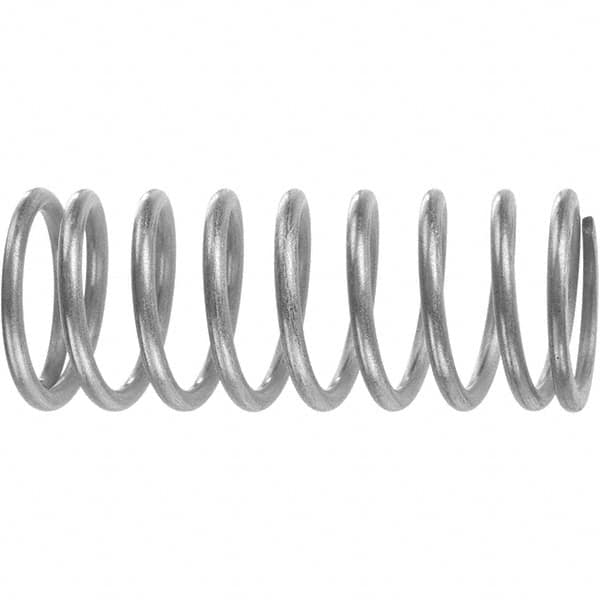

Compression Spring: 0.646″ OD, 8.5″ Free Length 0.105″ Wire Dia, 66.403 lb Max Load, 23.4 lb/in Spring Rate, Music Wire
Item #: 10582781
Brand: Associated Spring Raymond
Model #: C0646-105-8500M
Product Specifications
| Type | Compression |
| Outside Diameter (Decimal Inch) | 0.6460 |
| Free Length (Decimal Inch) | 8.5 mm; 8.5 in |
| Free Length (mm) | 8.5 mm; 8.5 in |
| Free Length | 8.5 mm; 8.5 in |
| Spring Rate Pounds per Inch | 23.4000 |
| Spring Rate Newtons | 23.4000 |
| Maximum Work Load (N) | 66.403 lb |
| Maximum Work Load | 66.4030; 66.403 lb |
| Solid Height | 5.420 |
| Spring Rate | 23.4000 |
| Material | Music Wire |
| Maximum Load | 66.403 lb |
| Wire Size (Decimal Inch) | 0.1050 |
